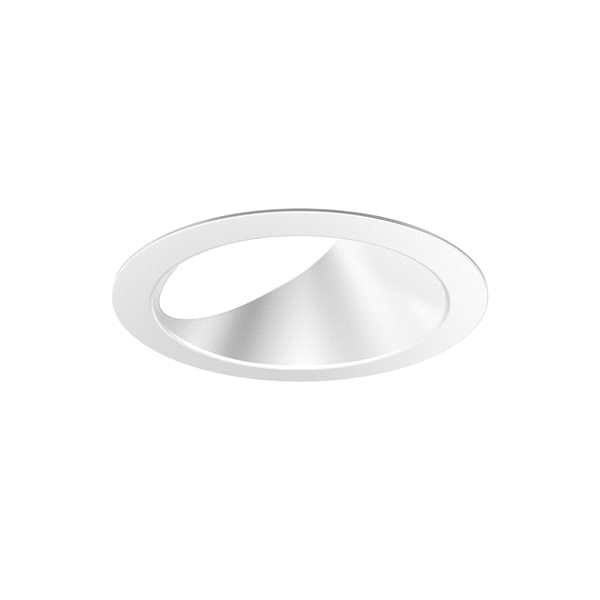

IVO 4" Round Wall Wash

The IVO™ family of downlights redefine breadth of options, visual comfort and performance found in a single product family. Setting a new standard in quality of light with industry-leading optics and an advanced light engine, these downlights are available in a versatile range of sizes, finishes, beam angles, and lumen outputs, while providing a seamless installation through an unmatched modular design.

Quality of Light

• Bounding Ray™ Technology controls glare and enhances architectural features while reducing stress and visual fatigue for occupants
• Perfect Color™ Technology leads the industry with a 0.5-step MacAdam ellipse, surpassing the typical 3-step MacAdam ellipse found in most downlights
• Patent pending optics ensure clean, crisp beams across all trims and styles, with options of field interchangeable beams from 10-degrees to 60-degrees in 5-degrees increments, and smooth batwing distributions for a uniformed illumination

Quality Options

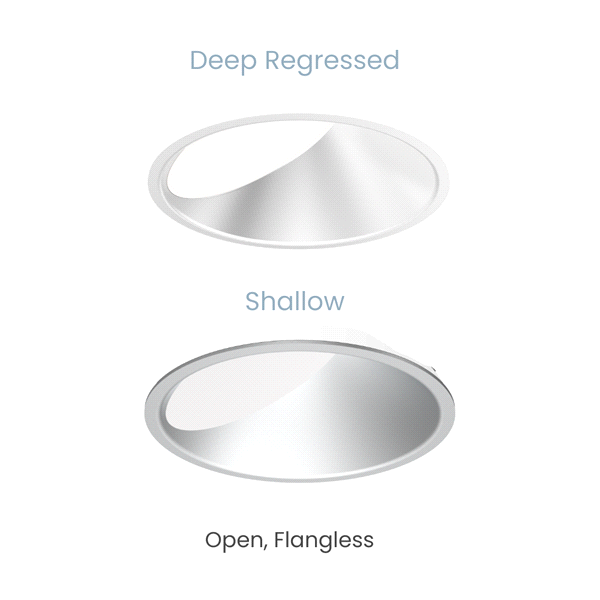

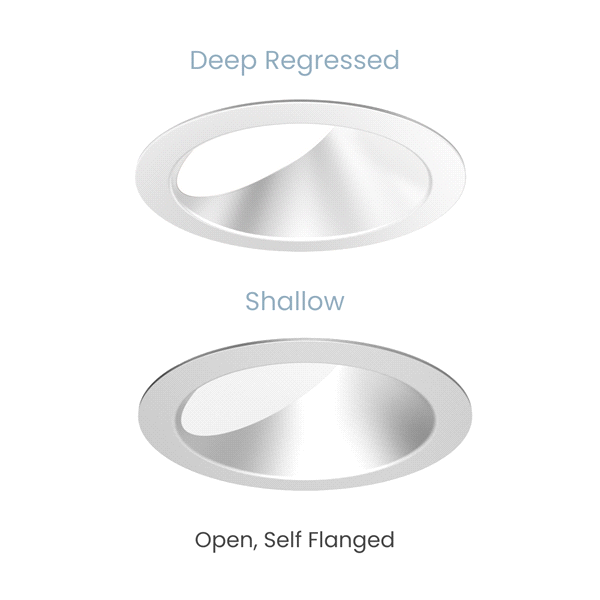

• Trim options: Cone and Bevel available as flanged, flangeless, and flangeless millwork
• Beam angles: 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, medium, medium wide, wide
• Cut off: 45-degrees, 65-degrees
• Solutions for any indoor installation type – deep regressed, shallow, new construction, remodel, ICAT and CP
• Damp and Wet Location configurations available for exterior applications
• Multitude of driver options for different electrical dimming preferences and control requirements – nLight® Air & Wires, DMX, DALI, ELV, ELDO, 0-10V, 10% to <1% dimming

Quality Design

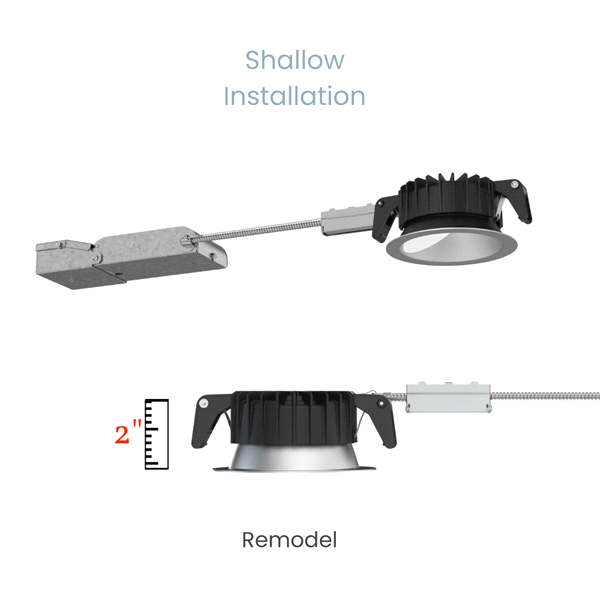

• Shallow Design: Delivers up to 3,000 lumens fitting in a 2” plenum depth. Module features with a quick-disconnect harness and strain relief for ease of inspection and service
• COMING SOON! Deep Regressed Design: Enhances visual comfort within a minimum 4.5” height, delivering up to 4,500 lumens with an easy plug-and-play installation design that provides maximum flexibility and quick installation
• Trim & Optics: Toolless design with a simple twist and lock mechanism for simple field interchangeability

Quality Performance

• Lumen packages from 500-5000LM and 500-6000LM
• 101 LPW and an L90 @ 60,000 hours
• IEEE flicker free solutions with EldoLED drivers
• Title 24 and Energy Star certifications for code and environment requirements
