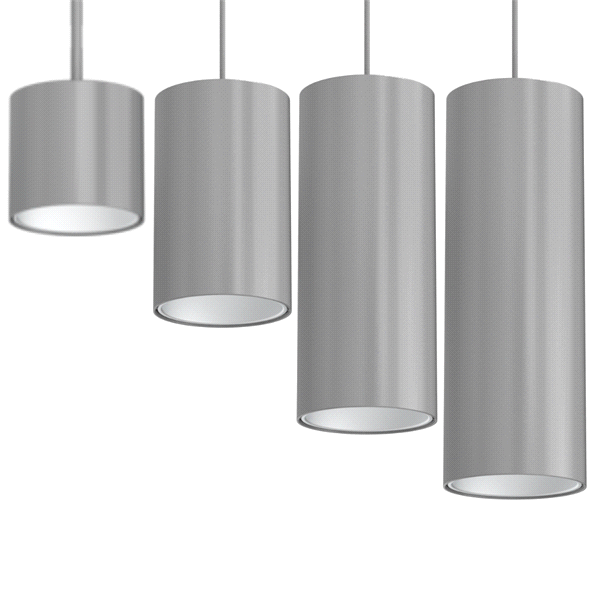

IVO 6" Round Wall Mount Cylinder

Features

  • Listings: Damp Location , Wet Location
  • Lumens (approx): 500-1,000, 1,001 - 1,500, 1,501 - 2,000, 2,001 - 2,500, 2,501 - 3,000, 3,001 - 3,500, 3,501 - 4,000, 4,001 - 4,500, 4,501 - 5,000, 5,001 - 5,500, 5,501 - 6,500, 6,501 -7,000
  • Mounting: Pendant, Stem
  • Shape: Round / Circle
  • Size: 6"
  • Source: LED

Applications

  • Atrium
  • Common Area
  • Conference Room
  • Elevator Lobby
  • Hallway / Corridor
  • Hospitality
  • Lobby / Reception
  • Open Office
  • Wall Washing

The IVO™ Cylinders offer the industry's most extensive selection of options, with endless configurations for complete design freedom. With modular adaptability, effortless installation, and unmatched light quality, these cylinders transform every space, and can help create every experience from intimate settings to soaring ceilings.

Quality of Light

  • Bounding Ray™ Technology controls glare and enhances architectural features while reducing stress and visual fatigue for occupants
  • Perfect Color™ Technology leads the industry with a 0.5-step MacAdam ellipse, surpassing the typical 3-step MacAdam ellipse found in most downlights

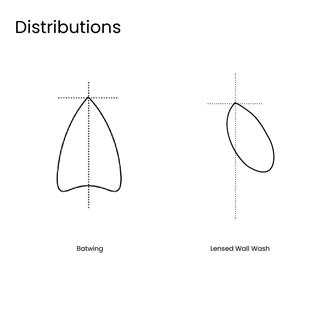

  • Patent pending optics ensure clean, crisp beams across all trims and styles, with options of field interchangeable beams from 10-degrees to 60-degrees in 5-degrees increments, and smooth batwing distributions for a uniformed illumination

Quality Options

  • Function: Downlight and Lensed Wall Wash
  • Trim options: Cone and Lensed Wall Wash
  • Beam angles: 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, medium, medium wide, wide
  • Cut off: 45-degrees, 65-degrees
  • Colors: 20 architectural colors and full breath of RAL custom colors , 10 reflector colors, and 3 finishes
  • Multitude of driver options for different electrical dimming preferences and control requirements – nLight, DALI, ELV, 0-10v, 10% to <1% dimming
  • Emergency Battery Backup Options

Quality Design

  • Lengths: 5” (shallow), and additional lengths at 8”, 12”, and 15” (coming soon)
  • Trim & Optics: Toolless design with a simple twist and lock mechanism for the optic and force full tension for the trim to simplify field interchangeability
  • Stem Mounting: Suspension is suitable for indoor or outdoor applications, can be field cuttable and can be specified in 2’ increments.
  • Cord Mounting: Cord suspension is designed with a hang-straight system that provides a tight and perpendicular suspension at all times. Cords are field cuttable down to 4" and include integrated aircraft cable.

Quality Performance

  • Lumen packages from 500-5000LM and 500-6000LM
  • 101 LPW and an L90 @ 60,000 hours
  • IEEE flicker free solutions with EldoLED drivers
  • Listings: Energy Star, CSA, Damp Location, Wet Location

Other Products in This Series

IVO 6" Square Downlight

IVO 6" Round Downlight

IVO 4I" Round Pendant Mount Cylinder

See all products in this series

Application Tips & Inspiration

Wall washing and Wall Grazing

Wall washing and Wall Grazing

Illuminating a wall can be done in one of two ways: wall washing or wall grazing. The distinction between these two core lighting details is the fixture’s distance from the wall surface.
