BASO Direct Indirect

XAL

Product Details

Manufacturer's Product Page


Spec Sheets

BASO 1.5
BASO 1.5 Louver
BASO 2.5
BASO 4.0

Features

  • Lumens (approx): 1,501 - 2,000, 2,001 - 2,500, 2,501 - 3,000, 3,001 - 3,500
  • Mounting: Pendant
  • Shape: Rectangle
  • Size: 1.5", 3", 4"
  • Source: LED

Applications

  • Cafeteria
  • Conference Room
  • Hallway / Corridor
  • Library
  • Small Office
  • Open Office

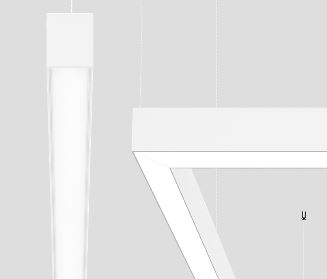

Pendant aluminum slot; snap-in LED boards and cover; powder coated white, trim version available in gray, white or black. Light leak-free gasket endcaps.  Damp rated. CEILING / WALL / PENDANT OPTION: 1.5", 2 3/8", and 4" wide x 3" high fixture made of extruded aluminum profile with solid aluminum endcaps, powder coated gray, white or black. High performance opal cover for uniform illumination and an optical efficiency of up to η=74%. High efficiency LEDs with 80% lumen maintenance (L 91) long life 50,000 hour. Color temperature consistency to a 3-step MacAdam ellipse in 30K, 35K or 40K, CRI > 80. 120 / 277V input voltage with various dim options.
