Baso 2.5 Perimeter

XAL

Product Details

Manufacturer's Product Page


Spec Sheets

Baso 2.5 Perimeter

Features

  • Lumens (approx): 1 - 500 Per Foot, 501-1,000 Per Foot
  • Mounting: Recessed, Trimless
  • Size: 2', 4', 6', 8', Continuous Runs
  • Source: LED

Applications

  • Elevator Lobby
  • Hallway / Corridor
  • Hospitality
  • Lobby / Reception
  • Restaurant
  • Retail
  • Wall Washing

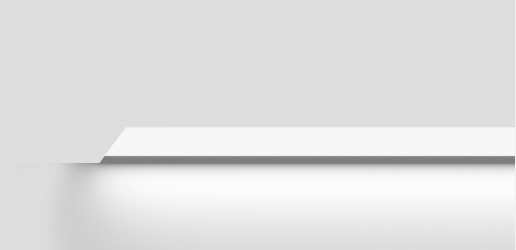

RECESSED OPTION: 2 3/8" wide recessed aluminum slot; snap-in LED boards and cover; trimless version available powder coated white, trim version available in gray, white or black. Light leak-free gasket endcaps. Custom edges for gap-free true trimless installation in sheet rock ceilings 5/16" – 1". Also suitable for installation in grid or acoustic ceilings. CCEA Chicago Plenum rated option available. IC rated, damp rated. High performance opal cover for uniform illumination and an optical efficiency of up to η=74%. High efficiency LEDs with 80% lumen maintenance (L 91) long life 50,000 hour. Color temperature consistency to a 3-step MacAdam ellipse in 30K, 35K or 40K, CRI > 80. 120 / 277V input voltage with various dim options.

Show more

Other Products in This Series

BASO Direct Indirect

BASO Surface / Pendant

Baso 4.0 Perimeter

See all products in this series

Application Tips & Inspiration

Wall washing and Wall Grazing

Wall washing and Wall Grazing

Illuminating a wall can be done in one of two ways: wall washing or wall grazing. The distinction between these two core lighting details is the fixture’s distance from the wall surface.
