WEDGE

Bartco

Product Details

Manufacturer's Product Page


Spec Sheets

WEDGE BSS750 3 inch
WEDGE BSS755 4 inch

Features

  • Listings: BAA Compliant (Buy America Act)
  • Lumens (approx): 500-1,000, 1,001 - 1,500
  • Mounting: Ceiling, Surface, Wall
  • Shape: Square
  • Size: 24", 36", 48", 60", 2', 3', 4', 8'

Applications

  • Small Office
  • Lobby / Reception

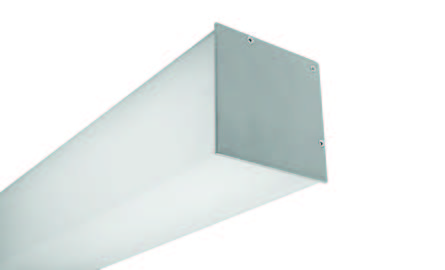

  • Fixture constructed of an extruded aluminum housing, frosted, extruded acrylic lens and sheet aluminum end caps
  • Model variations offered for surface and pendant mount applications
  • Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental  satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)
  • Satin anodize finish also available (may require additional lead time)
  • Available in nominal lengths of 23”-89” single fixtures and continuous runs
  • Continuous runs fitted with QuickConnects for simple, efficient wiring
  • One Ø 7/8” knock-out provided on both the top and back sides at the left end of the fixture
  • Standard integral driver offered with 0-10V dimming or non-dim
  • Other dimming driver options available
  • Remote mounted emergency battery backup available (ordered separately, consult factory for details)
  • Standard outputs are 5W and 8W nominal per foot
  • LEDs available in 3000K, 3500K, 4000K, 5000K, all with a typical 84-85 CRI and color consistency within a 3 step MacAdam ellipse
  • Lamp life rated at 50,000 hours
  • Limited five year warranty
  • UL and C-UL listed for dry and damp locations
  • IBEW manufactured and assembled
  • Made in U.S.A.
