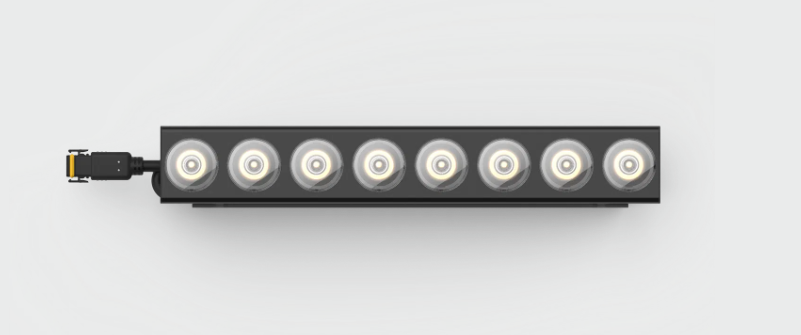

TROV L60 Cove

EcoSense

Product Details

Manufacturer's Product Page
Brochure


Spec Sheets

L60

Features

  • Lumens (approx): 1 - 500, 500-1,000, 1,001 - 1,500, 1,501 - 2,000, 2,001 - 2,500, 2,501 - 3,000, 3,001 - 3,500, 3,501 - 4,000, 4,001 - 4,500, 4,501 - 5,000, 5,001 - 5,500, 5,501 - 6,500
  • Mounting: Channel , Clip, Surface
  • Size: 1', 4'
  • Source: LED

Applications

  • Accent
  • Cafeteria
  • Church
  • Commercial
  • Common Area
  • Cove lighting
  • Facade Lighting
  • Gallery
  • Museum Lighting
  • Outdoor / Exterior
  • Restaurant
  • Retail
  • Supermarket
  • Higher power output (18W/ft driver, providing up to 2200 lm/ft).
  • Compact Design: With a sleek and compact design, our lighting system is 62.7mm(2.47in) tall x 47.3mm(1.86in) wide, making it easy to install in any space.
  • Improved optics: 13 optics that include 5×5, 10×10, 10×40, 10×65, 20×20, 20×40, 20×70, 30×30, 30×45, 30×75, 55×55, 55×60, and 55×90, providing a wide range of lighting options.
  • Color Temperature and CRI: 7 CCTs, including 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, and 6500K, with a CRI of 80 and 90 options.
  • Mono Colors: 4 mono colors, including Red, Green, Blue, and Amber.
  • Efficacy: high efficacy, with wide beams ranging from 20° 105-130 lm/W and narrow beams from 5° to 10° 80-90 lm/W.
  • CBCP: exceptional CBCP values, including 5°x5° = 90,000 candela = 300ft throw, 10°x10° = 25,000 candela = 160ft throw, and 20°x20° = 17,000 candela = 130ft throw, providing excellent lighting coverage.
  • All new and improved accessories.
  • Fluid articulation with lockable aiming.
  • Standard finishes: Black, White, and Custom finishes available.
  • Smooth dimming down to 0.01%.
  • KAST –– Auto-Sensing Technology Powered by Korrus –– detects and controls the four major commercial dimming protocols:
    • ELV (Reverse phase)
    • 0-10V (Single & Dual)
    • DALI
    • DMX/RDM
Show more

Other Products in This Series

Trov SLIM L30

TROV L45 RGBW Cove

TROV L60 RGBW

See all products in this series

Application Tips & Inspiration

LEED - Light Pollution Reduction for Exterior Lighting

LEED - Light Pollution Reduction for Exterior Lighting

To minimize light trespass from the building and site, reduce sky-glow to increase night sky access, improve nighttime visibility through glare reduction and reduce development impact from lighting on nocturnal environments.

Cove Lighting

Cove Lighting

Cove lighting is one of the basic lighting techniques, a type of uplighting that directs light to the ceiling plane from a cove on one or more sides of a room to provide overall diffuse illumination.

Dark Sky Friendly

Dark Sky Friendly

Modern society requires outdoor lighting for a variety of needs, including safety and commerce. IDA recognizes this but advocates that any required lighting be used wisely.  easy visual guide to understand the differences between unacceptable, unshielded light fixtures and those fully shielded fixtures that minimize skyglow, glare and light trespass.

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
