TRAVE

Bartco

Product Details

Manufacturer's Product Page


Spec Sheets

Trave BSS710

Features

  • Lumens (approx): 501-1,000 Per Foot
  • Shape: Rectangle
  • Size: 24", 36", 48", 60", 72", 96"
  • Source: LED

Applications

  • Small Office
  • Lobby / Reception
  • Residential

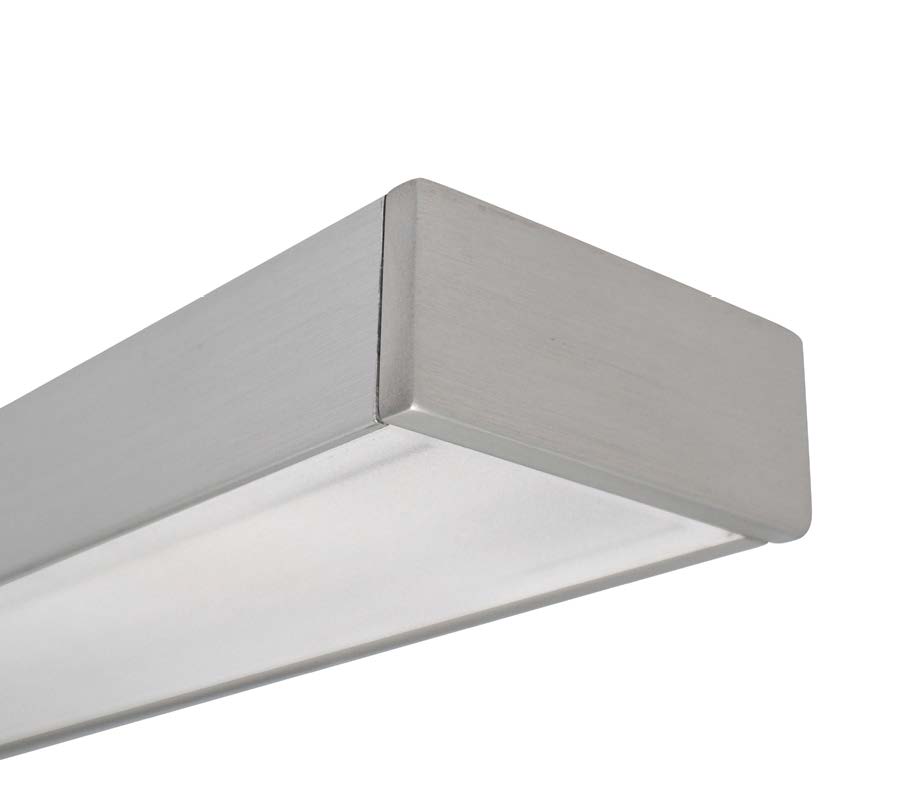

  • Fixture constructed of an extruded aluminum housing, extruded, frosted acrylic lens and machined aluminum end caps
  • Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental  satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)
  • Satin anodize finish also available (may require additional lead time)
  • Fixture housing engages with an extruded aluminum cleat in a direct or indirect orientation and is secured with lock screws
  • Available in nominal lengths of 2’-8’ as single fixtures and continuous runs
  • Fixtures wired with 10’ low voltage leads which exit from the rear at the left or right end
  • Requires a remote driver and enclosure (ordered separately, refer to supplemental driver sheet for general information and consult factory for details and specification model number)
  • Remote mounted emergency battery backup available (ordered separately, consult factory for details)
  • Standard light outputs are 550 or 750 lumens per foot
  • LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical
  • LED life rated at 50,000 hours
  • Five year limited warranty
  • UL and C-UL listed for dry and damp locations
  • IBEW manufactured and assembled
Show more

Application Tips & Inspiration

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
