SLIM WALL PACKS

Industrial Lighting Products (ILP)

Product Details

Manufacturer's Product Page
Brochure


Spec Sheets

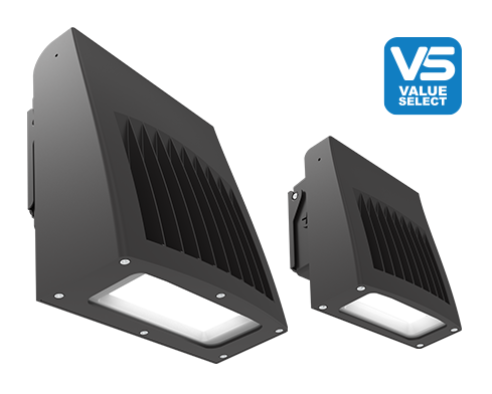

Slim Wall Pack

Features

  • Control Devices: Sensors, Switches
  • Listings: IP66
  • Lumens (approx): 4,001 - 4,500, 4,501 - 5,000, 5,001 - 5,500, 6,501 -7,000, 7,001 - 8,000, 8,001 - 9,000, 10,001 - 15,000, Switchable
  • Mounting: Post Top, Wall
  • Source: LED

Applications

  • Outdoor / Exterior
  • Area / Site Lighting
  • Low profile die-cast aluminum housing
  • Bronze polyester powder coat finish (std.)
  • Custom and factory select colors available¹
  • Isolated optical compartment with tempered glass lens and silicone gaskets
  • 90° adjustable Type IV distribution or Optional IDA fixed model2
  • Quick mount bracket standard for easy surface mount installation
  • Three ½” coin plugs on sides for conduit or electronic photocell
  • 120–277V Universal Voltage or 347V–480V High Voltage3
  • Achieve code compliance with a fixed down PIR sensor with fully adjustable distribution aiming
  • 0–10V Dimmable Driver (std.)
  • Deep box 10W battery backup & cold weather battery
    options available¹
  • Optional Field Adjustable Output device (FAO) allows individual luminaire lumen output control
  • 3000K, 4000K & 5000K CCT Selectable via Integral selector
  • >70 Color Rendering Index (CRI)
  • Calculated L70 >100,000 hrs @ 25°C per TM-21-11
  • IP65 Rated Luminaire
  • Title 24
  • 5 Year Warranty; 10 Year Optional Warranty
  • Lumen Selectable only with FAO accessory
  • ETL Listed for Wet Locations
  • DesignLights Consortium® Premium Qualified Luminaire
Show more

Application Tips & Inspiration

LEED - Light Pollution Reduction for Exterior Lighting

LEED - Light Pollution Reduction for Exterior Lighting

To minimize light trespass from the building and site, reduce sky-glow to increase night sky access, improve nighttime visibility through glare reduction and reduce development impact from lighting on nocturnal environments.

Dark Sky Friendly

Dark Sky Friendly

Modern society requires outdoor lighting for a variety of needs, including safety and commerce. IDA recognizes this but advocates that any required lighting be used wisely.  easy visual guide to understand the differences between unacceptable, unshielded light fixtures and those fully shielded fixtures that minimize skyglow, glare and light trespass.

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
