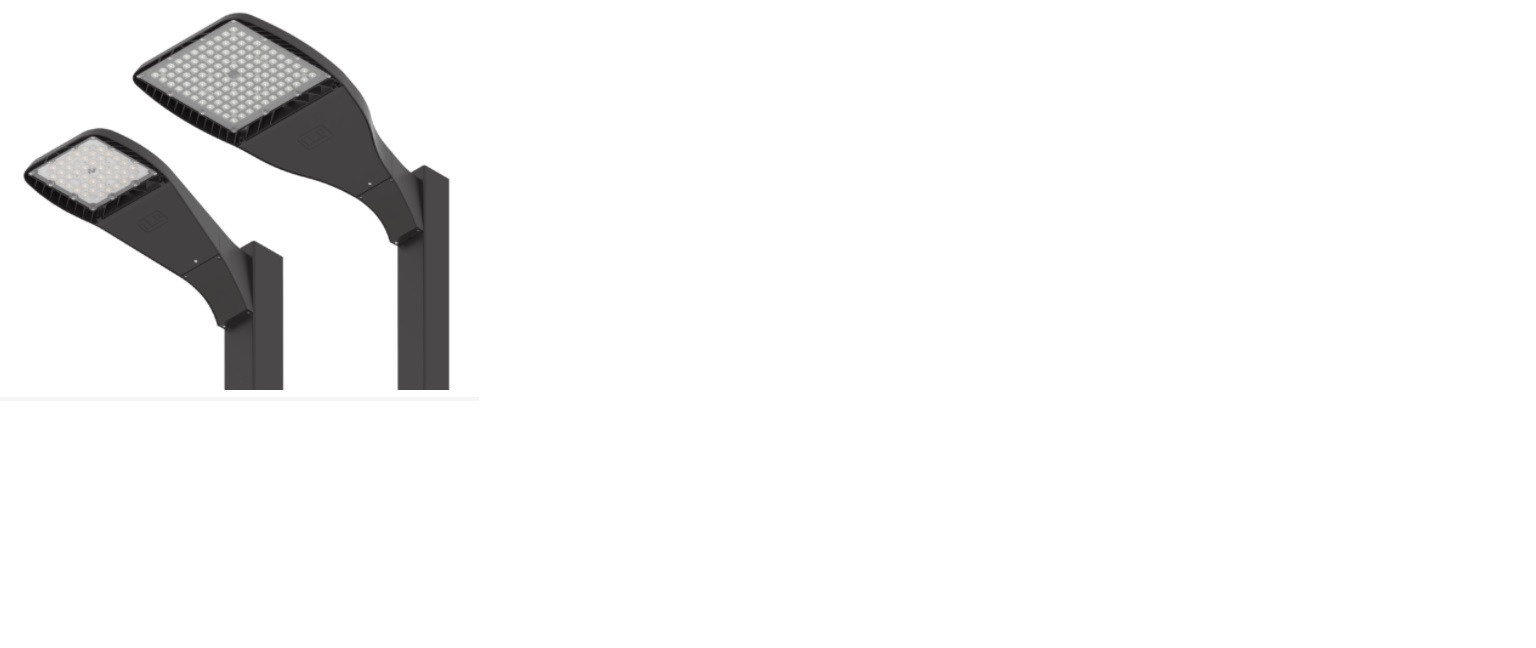

Skyline

Industrial Lighting Products (ILP)

Product Details

Manufacturer's Product Page
Brochure


Spec Sheets

SAS/SAM

Features

  • Control Devices: Photocells, Sensors
  • Controls Protocol: Wireless
  • Listings: Dark Sky Friendly , IP66
  • Lumens (approx): 5,501 - 6,500, 6,501 -7,000, 8,001 - 9,000, 10,001 - 15,000, 15,001 - 20,000, 20,001 - 25,000, 25,000+
  • Mounting: Pole
  • Shape: Rectangle
  • Size: 24", 36"
  • Source: LED

Applications

  • Area / Site Lighting
  • Bridge
  • Car Dealership
  • Classroom / School
  • Commercial
  • Distribution Center
  • Hospital / Healthcare
  • Restaurant
  • Retail
  • Roadway

Features:

  • Specification Grade die-cast aluminum housing
  • Powder Coat Finishes: Bronze (BRZ), Black (BLK), Silver (SLV) & White (WHT)
  • Custom color finishes available
  • 5 Optical Distributions with Highest Uniformity in their product class
  • Factory Rotatable Type 2, 3, 4, 5 Square, & Automotive Front Row Optics
  • Optional Spill Light Control Integral Shield (HSS)
  • Universal Quick Pole Mount Allows for 1 man installation on existing poles
    with no drilling required
  • 9 Different Optional Mounting Methods (3G Rated3)
  • Single Fastener hinged door driver access
  • 120–277V Universal Voltage or 347–480V High Voltage
  • 0–10V Dimmable Driver (std.)
  • PIR Occupancy, Photocell, & Bi-Level Dimming Sensors Available
  • 3-Pin & 7-Pin ANSI C136.41 Control Receptacle Options
  • Wireless control integrated luminaire
  • 3000K, 4000K & 5000K CCT
  • >70 Color Rendering Index (CRI)
  • Calculated L80 >100,000 hrs @ 25°C per TM-21-11
  • IP66 Rated Luminaire
  • Dark Sky Compliant
  • 5 Year Warranty; 10 Year Optional Warranty
  • ETL Listed for Wet Locations
Show more

Application Tips & Inspiration

Dark Sky Friendly

Dark Sky Friendly

Modern society requires outdoor lighting for a variety of needs, including safety and commerce. IDA recognizes this but advocates that any required lighting be used wisely.  easy visual guide to understand the differences between unacceptable, unshielded light fixtures and those fully shielded fixtures that minimize skyglow, glare and light trespass.

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
