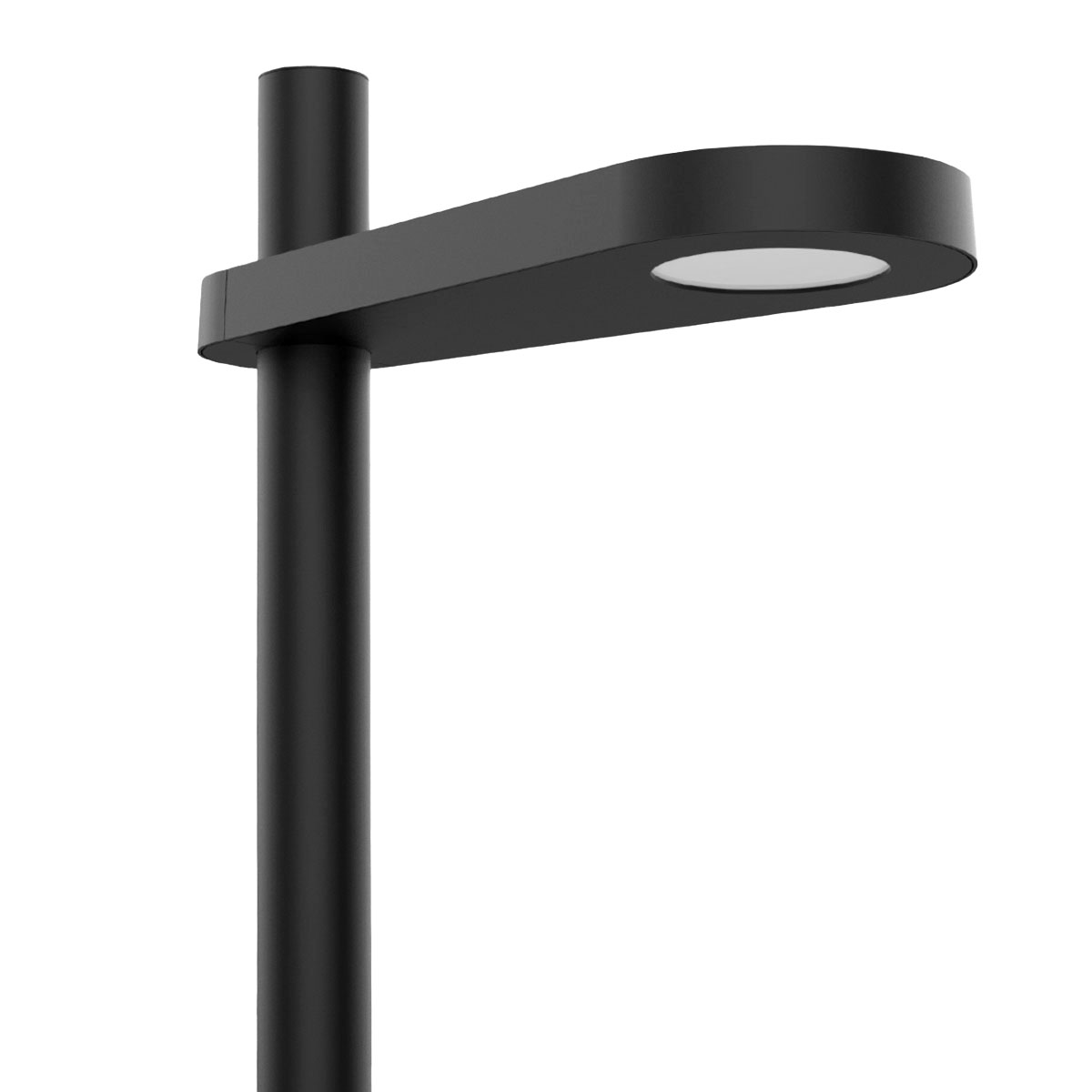

SiteLine Pole Mount SLP34 | SLP39

Variety of mounting & performance options available.
Available in two sizes, SiteLine post top luminaires are designed with a patent-pending
clamping mechanism that allows multiple fixtures to be mounted at any height or point in
a 360° radius on a single pole with no visible hardware.
• Comfort and performance are taken to the next level through ANP Lighting’s edge-lit,
LED Light Guide that delivers uniform illumination and superior optical control, while
significantly reducing glare and eliminating pixelation of the LED source.
• The day form appearance of the luminaire is further enhanced by the use of the
edge-lit LED Light Guide technology, providing a clean and minimalist appearance
when the fixture is off.
• ANP’s performance TIR optic platform engine offers a wide selection of lumen
packages, color temperatures and light distribution types with strict cutoffs.
• Type II, III, IV, and V distribution patterns in 2700K, 3000K, 3500K, and 4000K CCT.
• Standard Surge Protection Device featuring 20KA maximum discharge current meets
IEEE C62.41.2 Category C High and ANSI C136.2-2015 standards.
• Flush-mounted integral high-low digital PIR motion sensor available offering bi-level
dimming, utilizing 0-10V signal. The sensor is capable of dimming lighting loads down
to 50%, 25%, 10% or OFF.
• 39W California Title 24 Wattage packages available.
