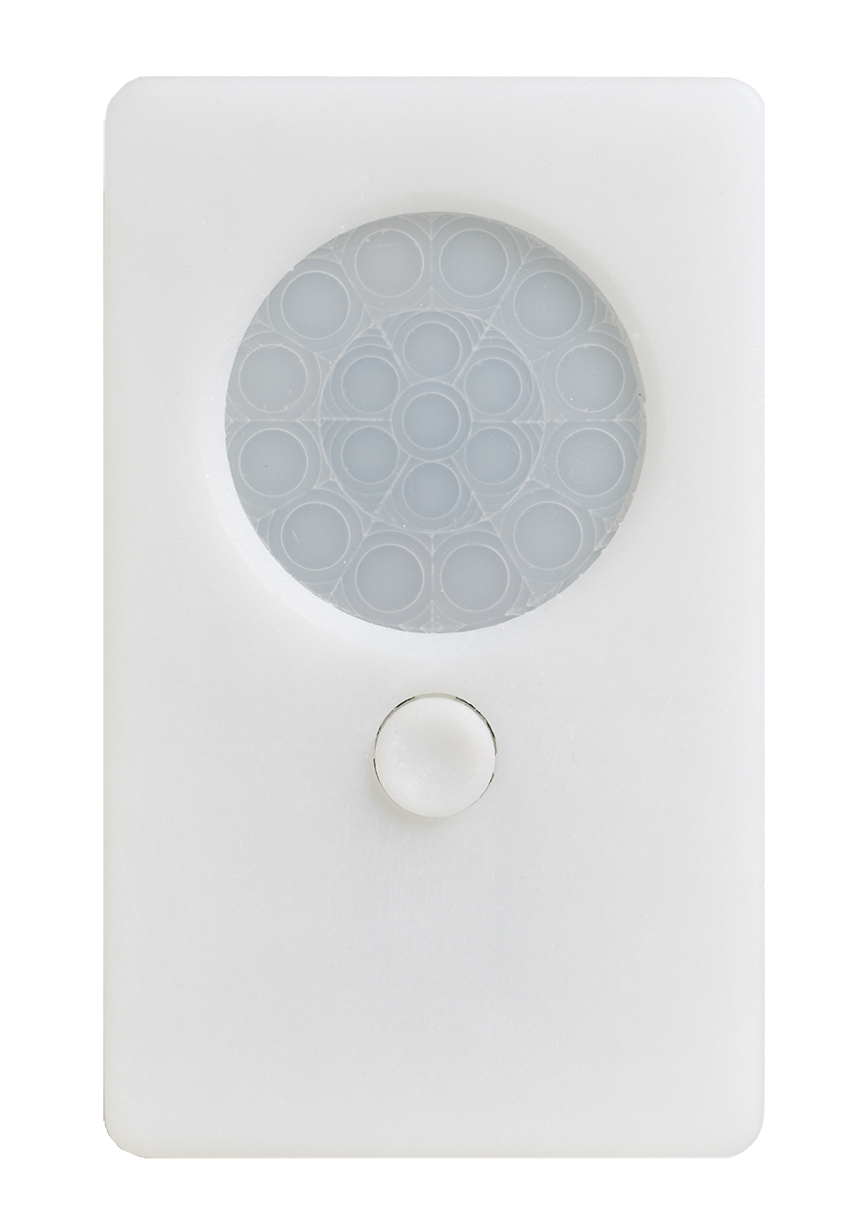

SFR 7 Low Bay Fixture Mount Sensor

The SFR 7 Series Mini Low Bay sensor is a compact line voltage occupancy sensor
that snaps directly into a small cavity in a fixture. The SFR 7 utilizes Passive Infrared (PIR) technology to provide 360~186; detection of walking motion from 8 to 20 ft (2.74 to 5.49 m) mounting heights. The SFR 7 is designed to achieve initial detection of walking motion along its axes at distances of 2x the mounting height up to 15ft (4.57 m) and 1.75x up to 20 ft (6.10 m). The SFR 7 also provides 12 ft (3.66 m) radial detection of small motion when mounted at 9 ft (2.74 m).
PIR Occupancy Detection
360~194;~186; Coverage
Self-Contained Relay - No Power Pack needed
No Minimum Load Requirements
Interchangeable Hot & Load Wires
Push-Button Programmable
Adjustable Time Delay
No Field Calibration or Sensitivity Adjustments Required
Convenient Test Mode
100 Hr. Lamp Burn-in Timer Mode
Green LED Indicator
Protects Lamp Life while Maximizing Energy Savings
Minimum On Timer (15 min default)
Occ. Time Delay (10 min default)
