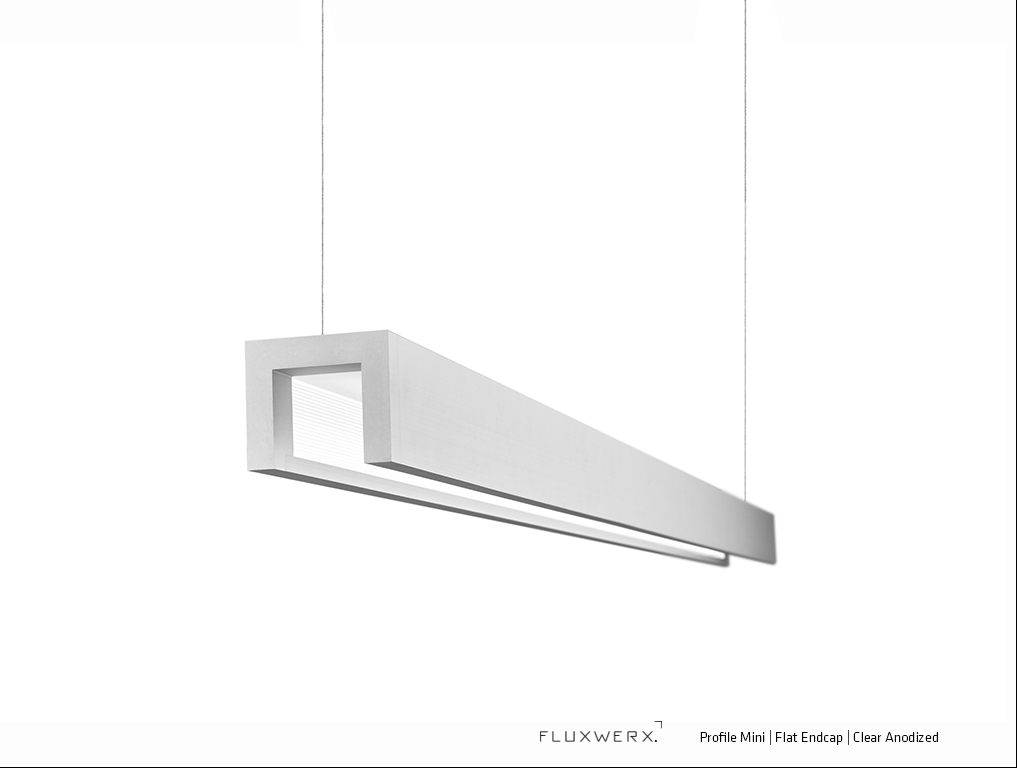

Profile Mini

Fluxwerx

Product Details

Manufacturer's Product Page


Spec Sheets

PROFILE MINI 40 UP | 60 DN (PM1-A)
PROFILE MINI 100 DN (PM1-B)
PROFILE MINI 20 UP | 80 DN (PM1-D)
PROFILE MINI 65 UP | 35 DN (PM1-F)
PROFILE MINI INDEP UP | DN (PM3-B)

Features

  • Control Devices: Emergency / Inverter
  • Lumens (approx): 1 - 500 Per Foot, 501-1,000 Per Foot
  • Mounting: Pendant
  • Shape: Square
  • Size: 48", 72", 96"
  • Source: LED

Applications

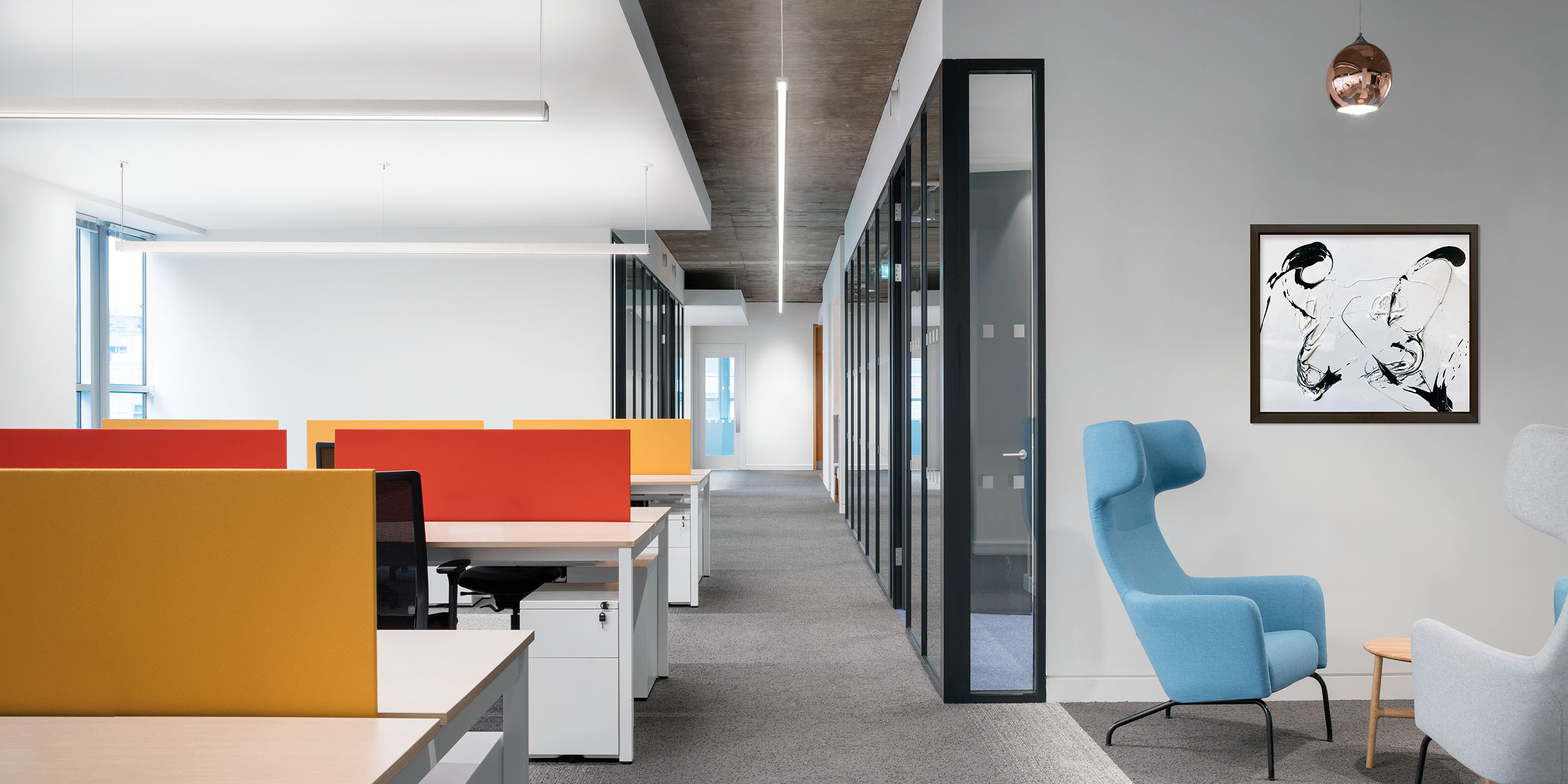

  • Open Office
  • Small Office
  • Lobby / Reception

Features

  • Signature open aperture design with fully luminous interior and no horizontal lenses or diffusers.
  • Small-scale cross section, less than half the area of Profile, for minimal luminaire presence.
  • Miniaturized Anidolic optics outperform much bigger luminaries – up to 15 ft o.c. spacing, delivering 40 fc at less than 0.4 W/ft² and workplane max/min under 2.
  • Efficacies up to 135 lm/W with over 115 lm/W direct from a 1.5″ aperture.
  • Four direct and direct/indirect general area lighting distributions (100Dn, 20Up/80Dn, 40Up/60Dn, 65Up/35Dn) aligned with Profile.
  • Four endcap styles, preinstalled for perfect fit and finish.
  • Precision machined, clear anodized extruded aluminum fixture body in 4′, 6′ & 8′ modules.
  • 2020 iF Design Award Winner
Show more

Other Products in This Series

Profile Mini Frame
