Phase Control Dimming Module

nLight Controls

Product Details

Manufacturer's Product Page
Brochure


Spec Sheets

Phase Control Dimming Module


Additional Links

Methodik-Sequence of operations tool

Features

  • Control Devices: Networking Devices, Relay Devices
  • Mounting: Other Mounting

Applications

  • nLight

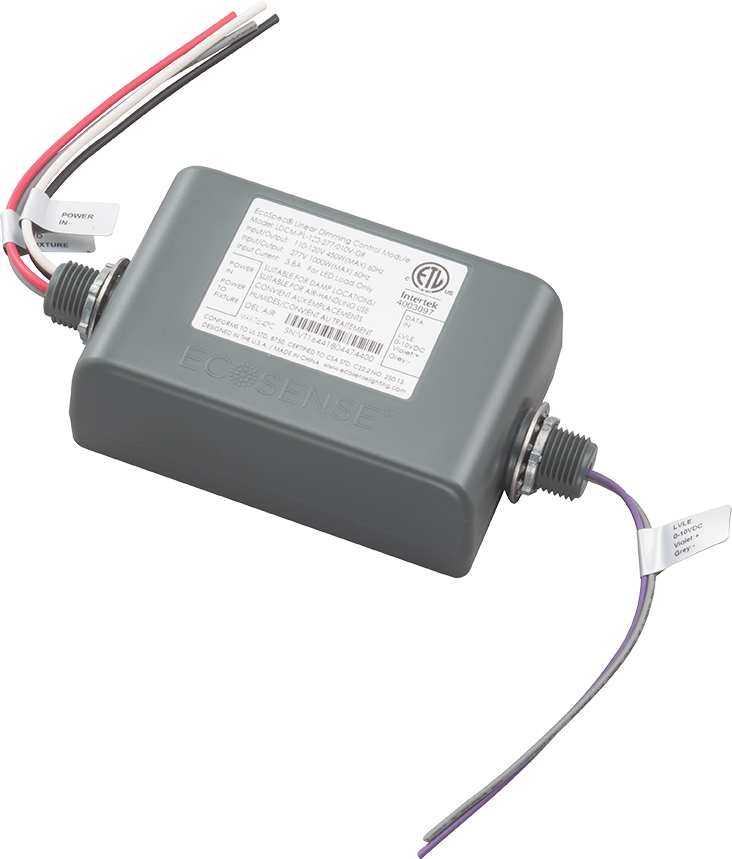

The PCDM dimming control module takes a 0-10v dimming signal and a fixed-line voltage input and converts it to a reverse-phase dimmed output for up to 1000W with a 277V load and 450W on a 120V load.

One PCDM can be used per power pack up to the maximum wattage. The PCDM is rated to directly mount to a junction box in a plenum space for easier installation and to help achieve code compliance.
