Neodymium 1

Lumium

Product Details

Manufacturer's Product Page


Spec Sheets

Neodymium 1 (1.70" x 1.70")

Features

  • Dynamic Features: Dim to warm, RGBW, Tunable White
  • Lumens (approx): 1 - 500, 1 - 500 Per Foot, 501-1,000 Per Foot, 1,001-1,500 Per Foot
  • Mounting: Arm, Cable, Pendant, Surface, Wall
  • Shape: Square
  • Size: 1"
  • Source: LED

Applications

  • Classroom / School
  • Conference Room
  • Hallway / Corridor
  • Open Office
  • Small Office
  • Wall Grazing
  • Wall Washing

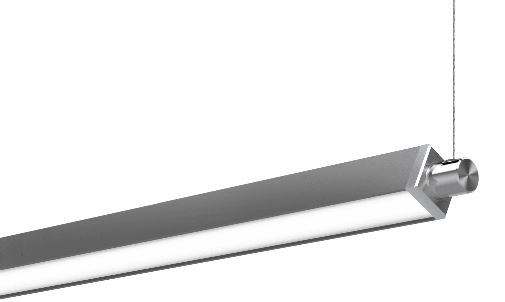

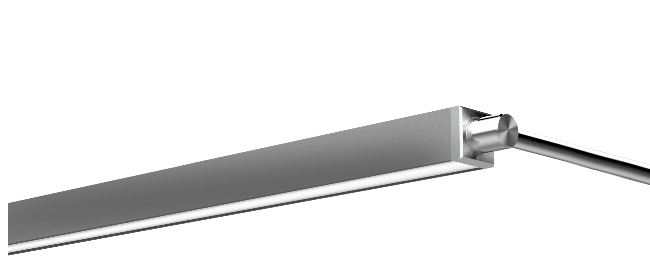

The slim, clean Neodymium 1 provides bi-directional lighting with two different apertures, which can be reversed for aesthetic preference. A remote driver, exceptional efficacy and variety of suspension options make this a versatile option for contemporary architectural settings.

Neodymium 1 Specifications

  • Optics options:
    • Flood
    • Batwing
    • Narrow Flood
    • Wall Graze
    • Wall Wash
    • Aisle Lighter
  • Tunablility:
    • Warm Dim
    • Tunable White
    • RGBW
  • Powered Suspension System (PSS)
  • Standard 0-10V dimming to 1%
  • Wattage and lumen package options @ 4000K (direct):
    • 4W / 496Lm/LF
    • 6W / 695Lm/LF
    • 8W / 920Lm/LF
    • 10W / 1107Lm/LF
    • 12W / 1335Lm/LF
  • Wattage and lumen package options @ 4000K (indirect):
    • 4W / 559Lm/LF
    • 6W / 783Lm/LF
    • 8W / 1037Lm/LF
    • 10W / 1247Lm/LF
    • 12W / 1505Lm/LF
  • Efficacy up to 132Lm/W
  • CCT range: 2700K, 3000K, 3500K, 4000K and 5000K
  • 2-step MacAdam Ellipse binning
  • Remote Driver
  • Multiple mounting options:
    • Cable Suspended
    • Cable Suspended Rotational
    • Rotational Arm Mount
    • Surface Mount
  • Light Distribution:
    • Bi-Directional, 360° Rotational
  • Dimensions: 1-11/16″ Square Profile

Other Products in This Series

Application Tips & Inspiration

Wall washing and Wall Grazing

Wall washing and Wall Grazing

Illuminating a wall can be done in one of two ways: wall washing or wall grazing. The distinction between these two core lighting details is the fixture’s distance from the wall surface.
