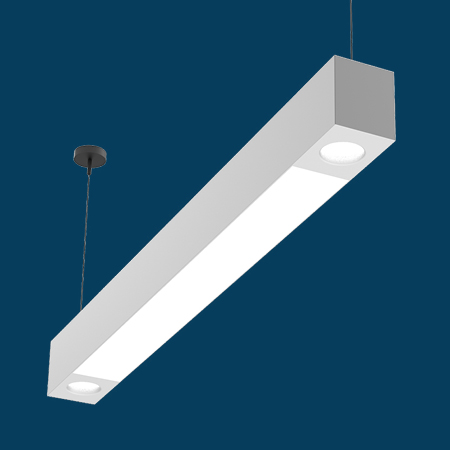

MLS3-DL Dynamic Downlight Modules DL

Mercury

Product Details

Manufacturer's Product Page


Spec Sheets

Suspended or Surface Mount

Features

  • Listings: BAA Compliant (Buy America Act)
  • Lumens (approx): 1 - 500 Per Foot, 501-1,000 Per Foot
  • Mounting: Cable, Pendant, Surface
  • Shape: Rectangle
  • Size: 4', 8', 12', Continuous Runs
  • Source: LED

Applications

  • Classroom / School
  • Open Office

Linear Features

  • Extruded aluminum housings produce perfectly straight lines of light.
  • Narrow 3″ profile.
  • Linear lengths; 4Ft., 8Ft. or 12Ft. Custom lengths and runs consult factory.
  • Custom formulated high diffusion extruded acrylic lens.
  • Non-glare matte-white polyester powder coating finish.
  • Cable or stem mount from ceiling, or direct surface mount.
  • Cataloged standard or custom set lumens-per-foot performances.
  • 80 CRI standard. 90 CRI available.
  • Fixture lumens per watt ratios up to 118.
  • Lighting controls and sensors.
  • American Made.

Downlight Features

  • Dynamic Xicato LED downlights add ambient and accent lighting as an integral part of the MLS3 linear LED illuminating system.
  • Proprietary die-cast aluminum trim with 3/8″ splayed regression.
  • Trim available in white or black.
  • Combines to create a unique multi-function system.
  • Each downlight modules (DL) delivers up to 1000 lumens.
  • Typically positioned on or near 4Ft. on centers.
  • Custom positioning on request.
  • Color temperatures available: 2700K, 3000K, 3500K or 4000K.
  • CRI 90.
  • Angle beam: 33 degree. Upon request 48 and 62 degrees.
Show more

Other Products in This Series

MLS3-DL-F Dynamic Downlight Modules DL Recessed

MLS3-DL-M Dynamic Downlight Modules DL
