MLP3

Mercury

Product Details

Manufacturer's Product Page


Spec Sheets

MLP3

Features

  • Listings: BAA Compliant (Buy America Act)
  • Lumens (approx): 1 - 500, 500-1,000
  • Mounting: Recessed
  • Source: LED

Applications

  • Small Office
  • Museum Lighting
  • Retail
  • Hospitality
  • Hallway / Corridor
  • Recessed perimeter linear system.

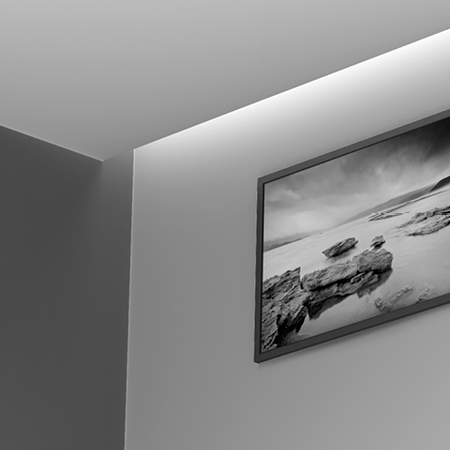

  • Enhances and defines the perimeter of the ceiling while making a space feel bigger and brighter.
  • Mounts against the wall and provides a defined floating edge to the ceiling.

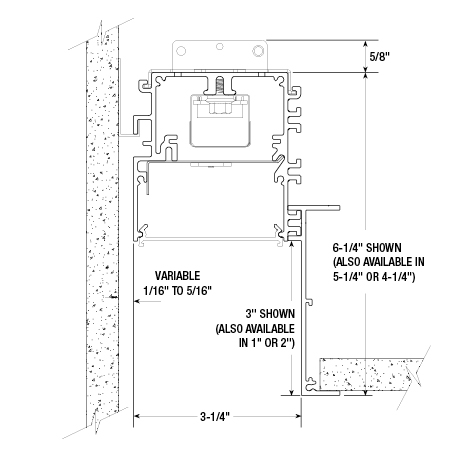

  • Housing regresses up into the ceiling; 1-, 2-, or 3-inches.
  • Direct downlighting for wall grazing and general room illumination.
  • Extruded aluminum housing for perfectly straight lines of light.
  • Approximate 3-1/2″ opening from ceiling to wall.
  • Linear lengths; 2-ft. and above in increments of one-inch.
  • Standard or wall grazing lenses are both custom formulated from high diffusion extruded acrylic.
  • Non-glare matte-white polyester powder coating finish.
  • Cataloged standard or custom set lumens-per-foot performances.
  • 80 CRI standard. 90 CRI available.
  • Dimming down to 1% on 0-10V controls.
  • IC rated.
  • Meets the requirements for Chicago Plenum use.
  • Fixture lumens per watt ratios up to 92.
  • Standard and custom corners.
  • American Made.
Show more

Application Tips & Inspiration

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
