M(S)P20

Features

  • Control Devices: Relay Devices
  • Mounting: Other Mounting

Applications

  • Controls & Wireless Controls

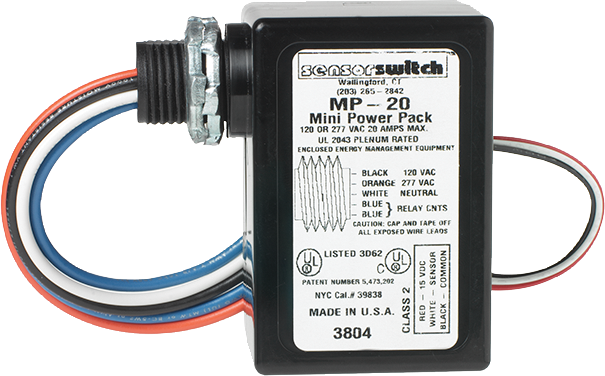

The MP20 mini power pack transforms 120, 240 or 277 Volts to Class II 15 VDC to power the remote sensors. Although Plenum Rated, the elongated mounting nipple allows for the MP20 to be mounted either directly through a 1/2 inch knockout in a junction box or to be located inside an adjacent box for specific local code requirements.

Up to 14 sensors may be connected to one MP20. Multi-circuit control can be handled by multiple MP20 mini power packs or MSP20 slave packs. MP20 can be wired continuously hot (line side) or on the switch leg (load side) without nuisance delays upon turn-on.
