Lumenfacade Nano Horizontal Exterior

Lumenpulse

Product Details

Manufacturer's Product Page
Brochure


Spec Sheets

Nano Horizontal
Dynamic White
Color Changing


Additional Links

Lumenpulse Bridge Infrastructure Brochure

Features

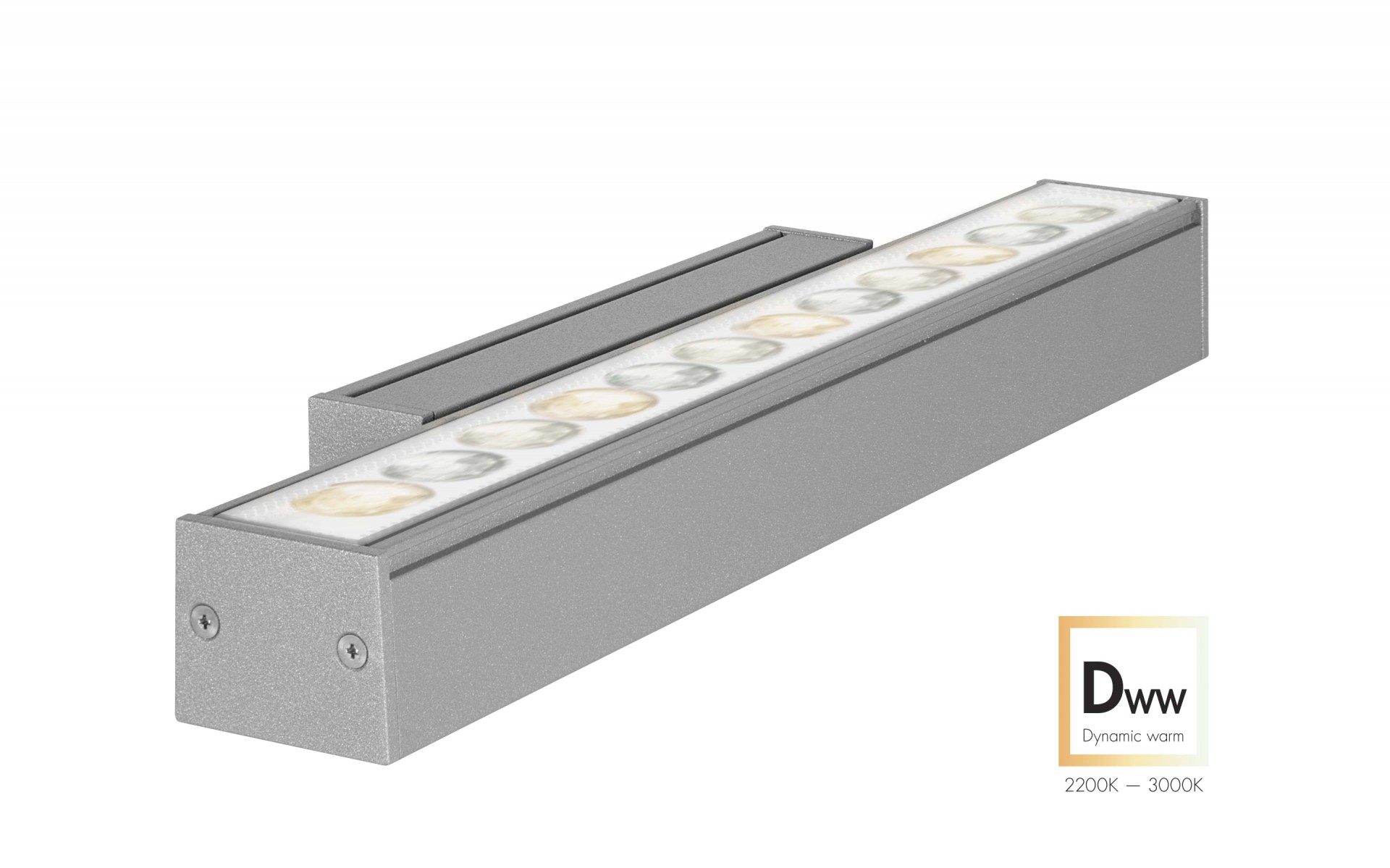

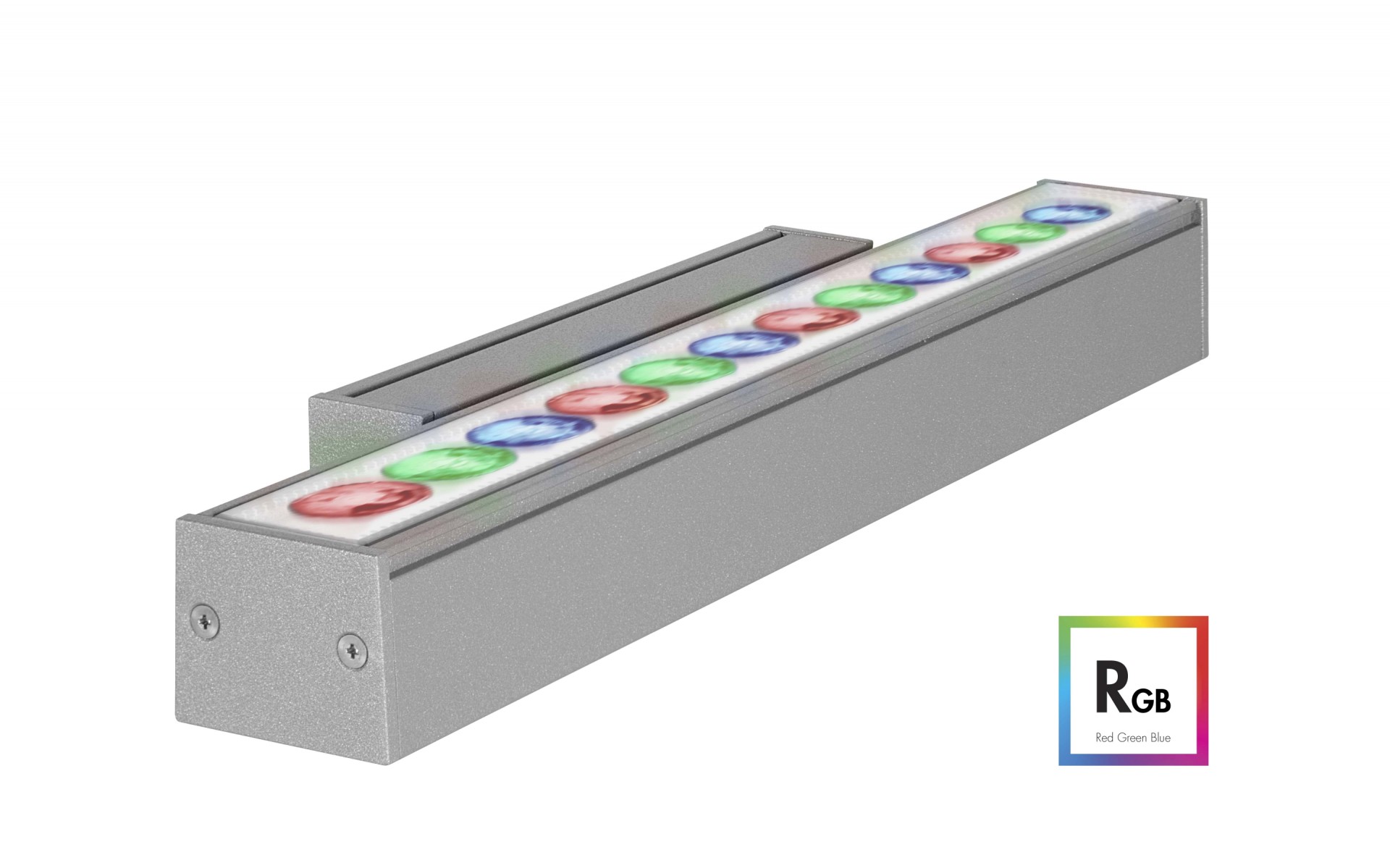

  • Dynamic Features: Dim to warm, RGB, RGBW, Tunable White
  • Listings: IP66
  • Lumens (approx): 1 - 500 Per Foot, 501-1,000 Per Foot, 1,001-1,500 Per Foot
  • Mounting: Arm, Surface
  • Size: 12", 24", 36", 48"
  • Source: LED

Applications

  • Facade Lighting
  • Wall Grazing
  • Outdoor / Exterior

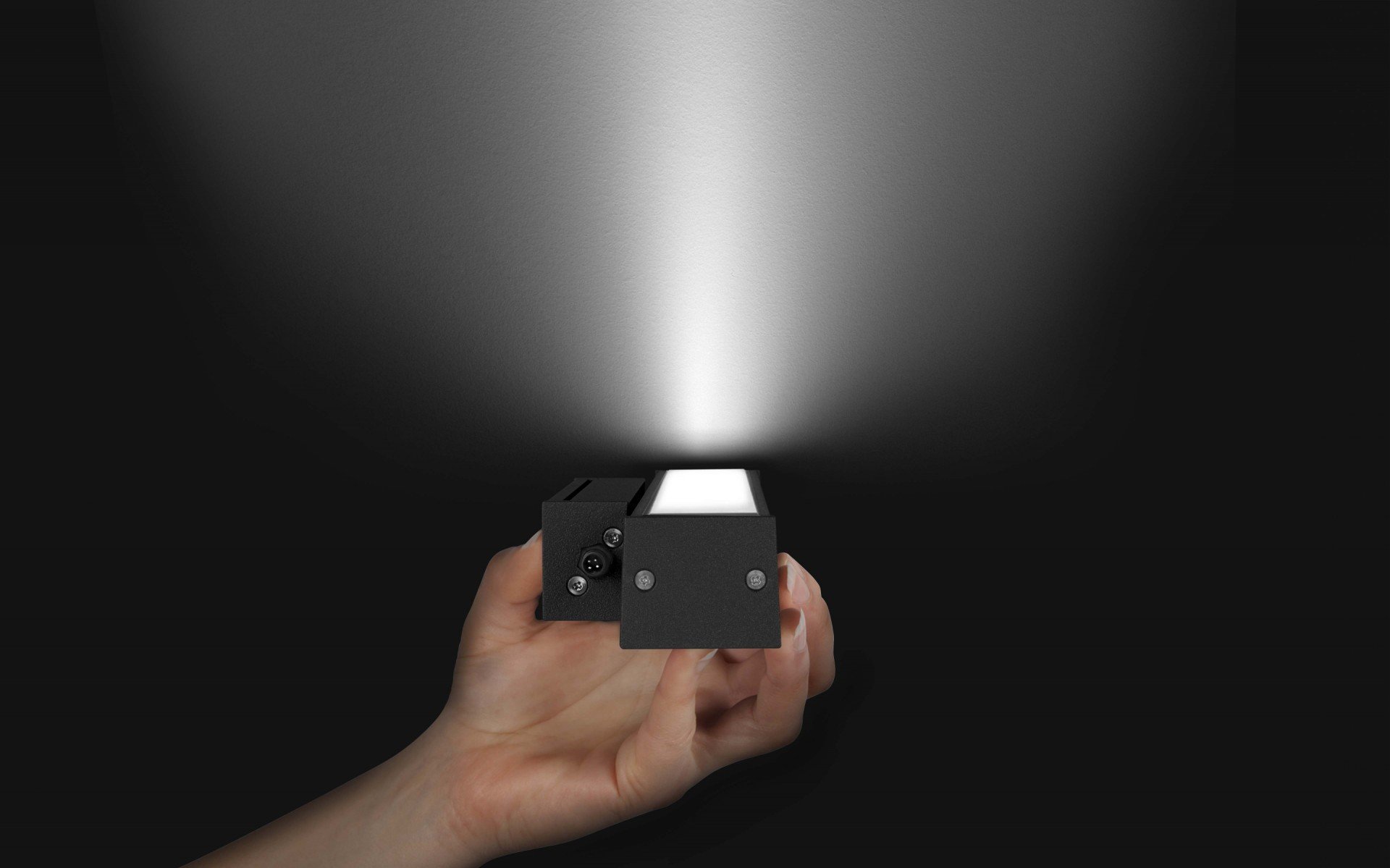

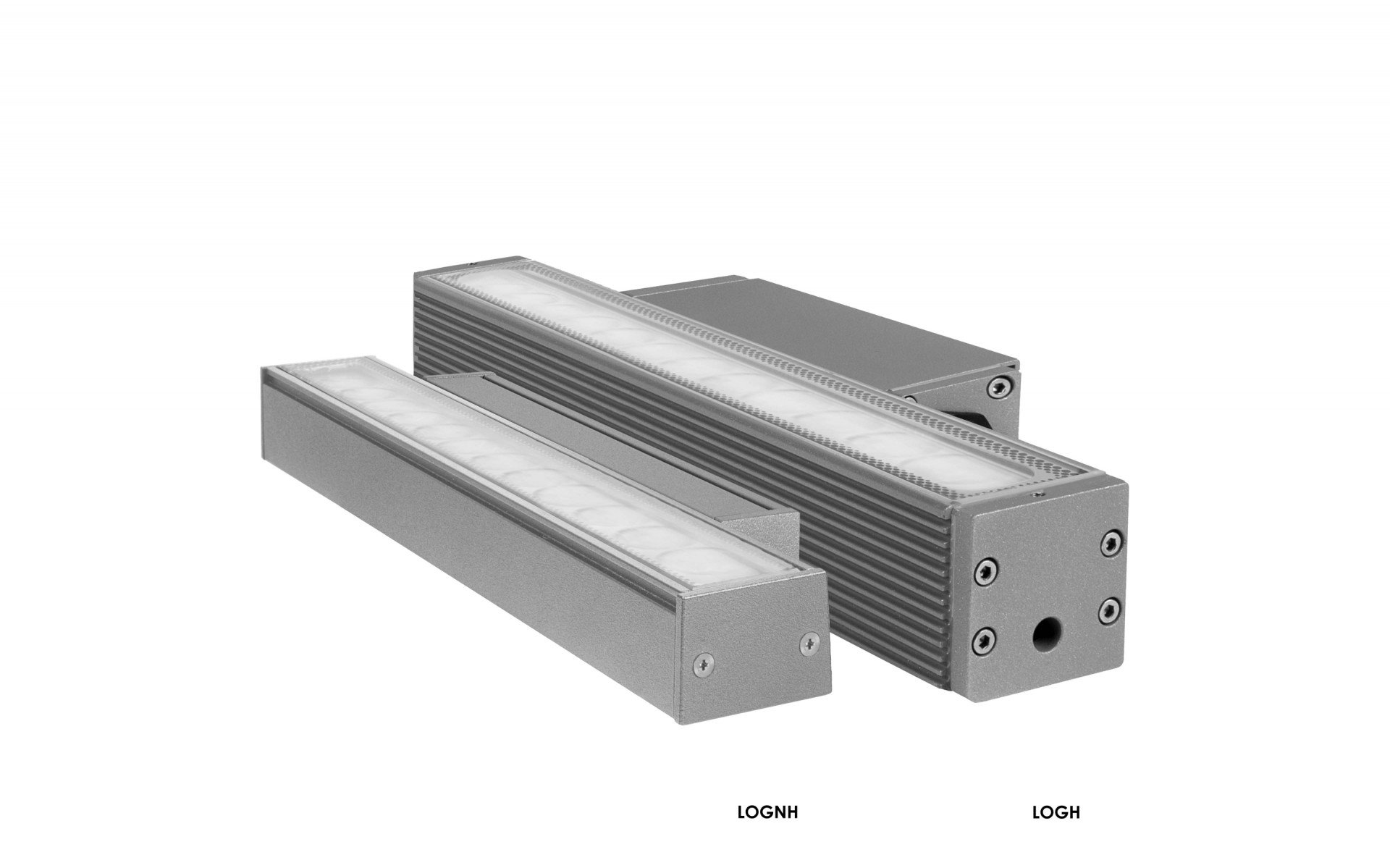

The Lumenfacade Nano Horizontal is a high-efficiency linear LED luminaire with a slim profile that makes it easy to conceal and integrate into architectural facades. Available in 12 in, 24 in, 36 in or 48 in sections, the Lumenfacade Nano Horizontal is the right fit for general urban structures, historical buildings and those hardest to reach places. The Lumenfacade Nano Horizontal can be configured with a wide number of options, including: optics for grazing, floodlighting, or wall washing; a choice of outputs; various color temperatures or static colors; various mounting options, finishes, accessories and controls. The Lumenfacade Nano Horizontal is also available with a unique asymmetric distribution, providing exceptional uniformity and brightness for walls and signage.

Show more

Other Products in This Series

Lumenfacade Nano Interior

Lumenfacade Remote

LumenFacade Inground Direct View

See all products in this series

Application Tips & Inspiration

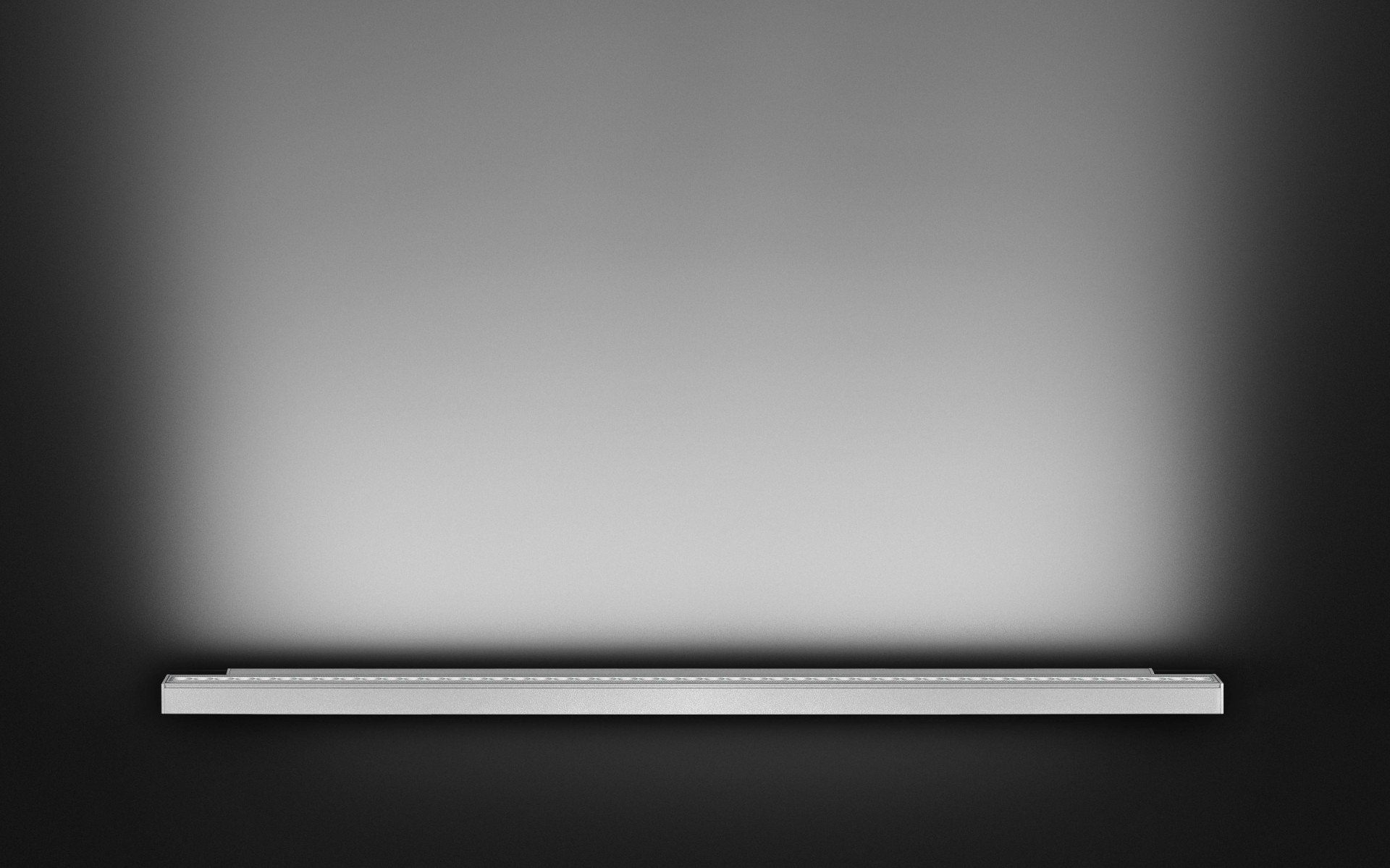

Wall washing and Wall Grazing

Wall washing and Wall Grazing

Illuminating a wall can be done in one of two ways: wall washing or wall grazing. The distinction between these two core lighting details is the fixture’s distance from the wall surface.

LEED - Light Pollution Reduction for Exterior Lighting

LEED - Light Pollution Reduction for Exterior Lighting

To minimize light trespass from the building and site, reduce sky-glow to increase night sky access, improve nighttime visibility through glare reduction and reduce development impact from lighting on nocturnal environments.

Dark Sky Friendly

Dark Sky Friendly

Modern society requires outdoor lighting for a variety of needs, including safety and commerce. IDA recognizes this but advocates that any required lighting be used wisely.  easy visual guide to understand the differences between unacceptable, unshielded light fixtures and those fully shielded fixtures that minimize skyglow, glare and light trespass.

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
