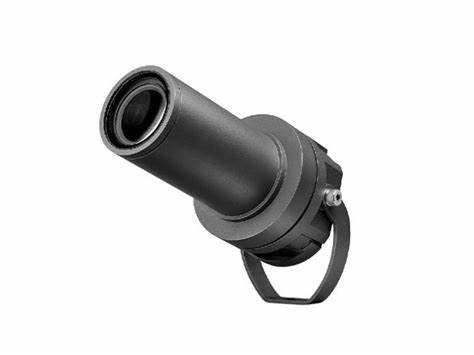

LED GOBO Projector

WE-EF

Product Details

Manufacturer's Product Page

Features

  • Listings: IK07, IP66, Marine Grade Finish
  • Lumens (approx): 1 - 500
  • Mounting: Arm
  • Shape: Round / Circle
  • Size: 3" x 15"
  • Source: LED

Applications

  • Area / Site Lighting
  • Arena
  • Atrium
  • Auditorium
  • Church
  • Classroom / School
  • Commercial
  • Display Video
  • Facade Lighting
  • Framing Projector
  • Gallery
  • Gymnasium
  • Landscape
  • Lobby / Reception
  • Marine Grade
  • Outdoor / Exterior
  • Sport Facilities
  • Sports Field
  • Theater

Profile Projector [GP] for projection of gobos on a surface. Spherical and aspherical, double flat convex lens system. IP66, Class III. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Electronic control gear in separate gear box (constant current), prewired. Gearbox to be ordered separately. One factory installed flange plug M8 x 1.5. Cable length 3.0 m. CAD-optimised optics for superior illumination and glare control. Factory-installed LED circuit board. Gobo outside diameter 37.5 mm, max. printable area d = 28 mm

Show more

Application Tips & Inspiration

LEED - Light Pollution Reduction for Exterior Lighting

LEED - Light Pollution Reduction for Exterior Lighting

To minimize light trespass from the building and site, reduce sky-glow to increase night sky access, improve nighttime visibility through glare reduction and reduce development impact from lighting on nocturnal environments.

Dark Sky Friendly

Dark Sky Friendly

Modern society requires outdoor lighting for a variety of needs, including safety and commerce. IDA recognizes this but advocates that any required lighting be used wisely.  easy visual guide to understand the differences between unacceptable, unshielded light fixtures and those fully shielded fixtures that minimize skyglow, glare and light trespass.

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
