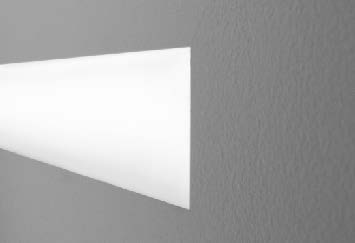

INWALL BIW110

Features

  • Mounting: Recessed
  • Size: 48", 60", 2', 3', 4', 8'
  • Source: LED

Applications

  • Small Office
  • Lobby / Reception
  • Fixture constructed of extruded aluminum frame sides, 20 gauge steel and aluminum end plates, joining components and reflectors and 2” wide frosted acrylic lens
  • Available in nominal 24”-96” lengths in 3” increments as single fixtures and continuous runs
  • Single fixtures and runs can be flush mounted on all sides within a single plane or butt up to an adjacent plane
  • LED module/reflector assembly accessed and serviced through the fixture aperture
  • Standard constant voltage driver offered with 0-10V dimming or non-dim and with integral or remote mount options
  • Integral driver option ensures there are no issues with voltage drop across the length of the fixture run
  • Driver housing designed to fit within 16” on center wall studs and can be positioned in the field
  • Frosted acrylic lens segments are provided longer than required and trimmed to fit in the field (lens quantities lengths and joints for a given run will be optimized in the shop drawing phase)
  • Standard output is 500 lumens per foot
  • LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 80+ CRI typical
  • LED life rated at 50,000 hours
  • Limited five year warranty
  • UL and C-UL listed for dry and damp locations and I.C. rated
  • IBEW manufactured and assembled
  • Made in U.S.A.
