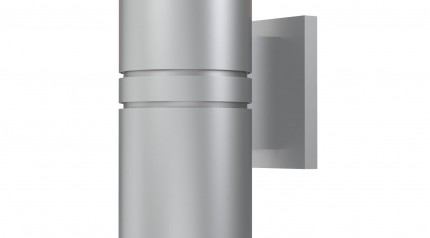

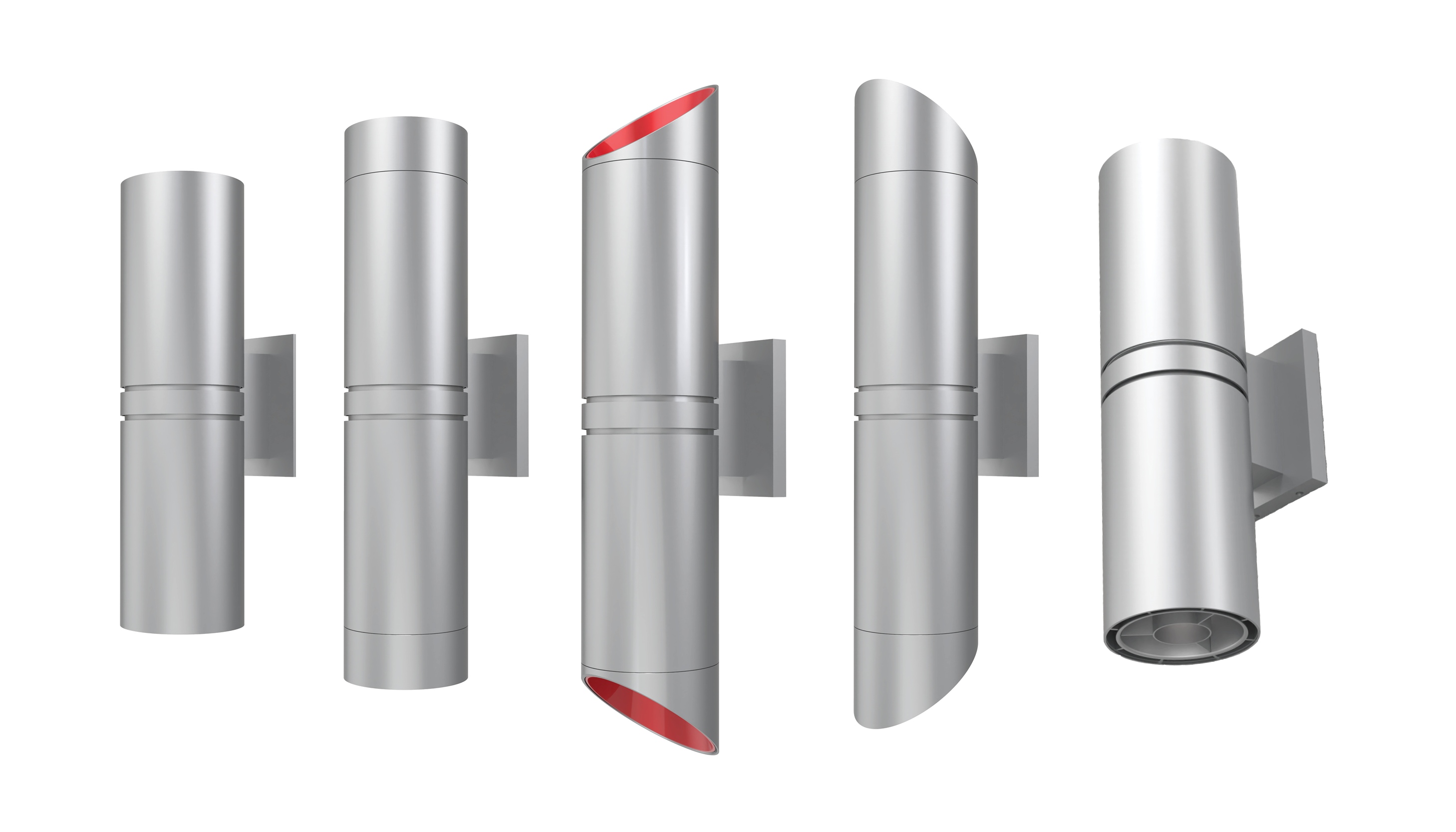

Incito 4" LED Direct-Indirect Wall Mount Cylinder

Gotham

Product Details

Manufacturer's Product Page


Spec Sheets

ICO 4" Open Wall Mount Cylinder

Features

  • Listings: IP66, Wet Location
  • Lumens (approx): 500-1,000, 1,001 - 1,500, 1,501 - 2,000, 2,001 - 2,500, 2,501 - 3,000, 3,501 - 4,000, 4,001 - 4,500, 4,501 - 5,000
  • Mounting: Wall
  • Shape: Round / Circle
  • Size: 4"
  • Source: LED

Applications

  • Accent
  • Canopy
  • Common Area
  • Facade Lighting
  • Outdoor / Exterior
  • Wall Grazing
  • Wall Washing
  • High Center Beam Candlepower (CBCP) and narrow field angle create sharp contrast with crisp highlights and deep shadows; ideal for task, directional, and accent lighting
  • Individually controlled direct or indirect light and the ability to select lumens and optics independently

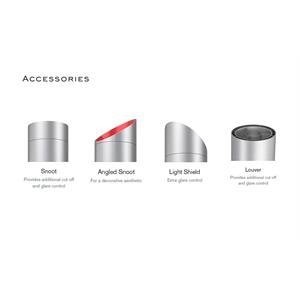

  • 4 accessory options including snoot, angled snoot, light shield, and louver, to provide additional cut off and glare control
  • 19 architectural colors for luminaire and accessory finishes
  • Field-interchangeable optics
  • Symmetrical beam angles available: 10°, 15°, 20°, 25°, 30°, 35°, 40°, 45°, 50°, 60°, 65°, asymmetrical
  • Driver and LED light engine fully serviceable
  • Wet location (WL) and IP66 options available
  • 70% lumen maintenance at 60,000 hours
  • 2.5 SDCM; 85 CRI typical, 90+ CRI optional
  • Lumen packages per direction: 500/750/1000/1500/2000/2500/3000/3500/4000/4500/5000
  • Color temperature options: 2700K, 3000K, 3500K, 4000K, 5000K
Show more

Application Tips & Inspiration

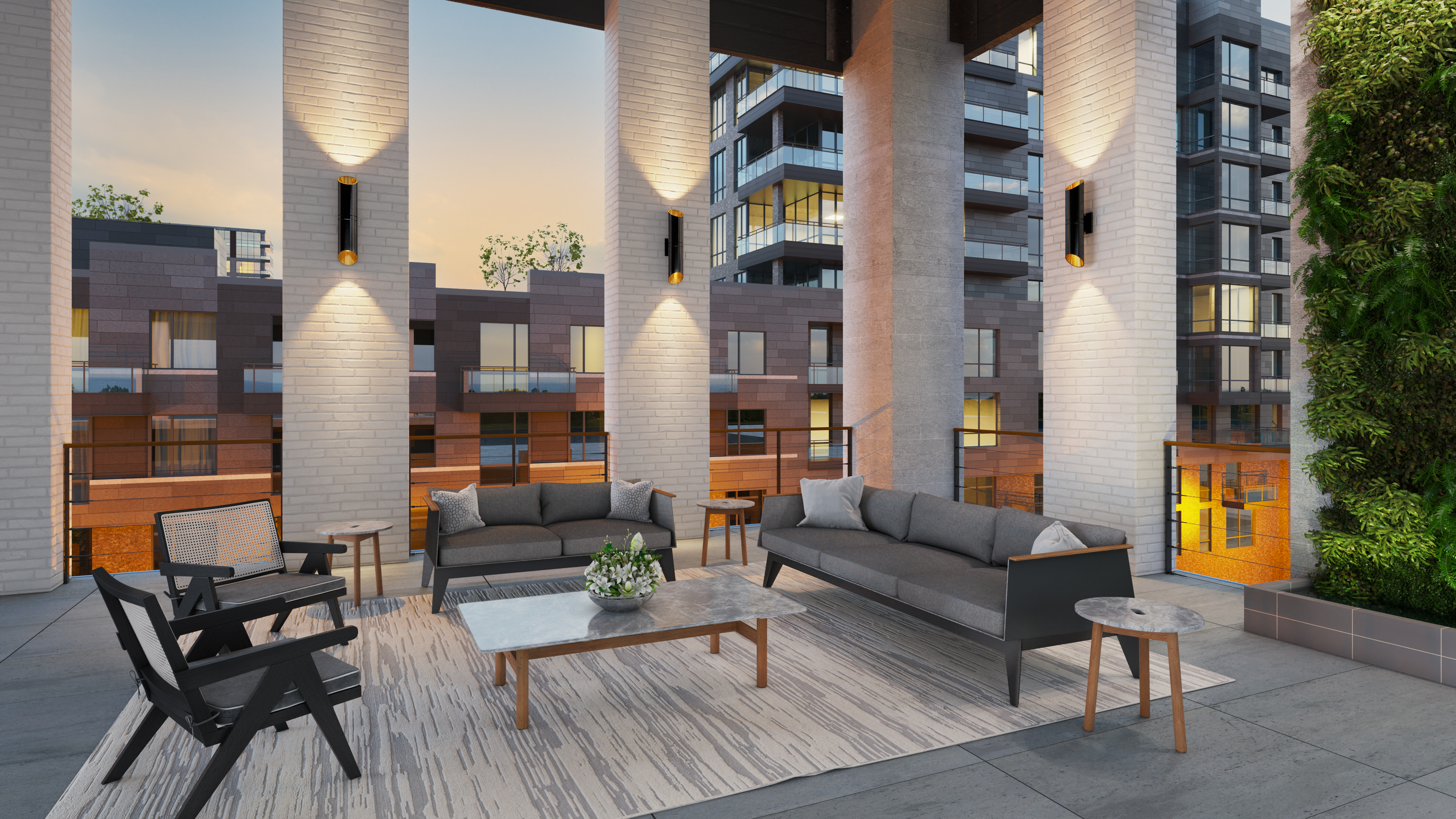

Wall washing and Wall Grazing

Wall washing and Wall Grazing

Illuminating a wall can be done in one of two ways: wall washing or wall grazing. The distinction between these two core lighting details is the fixture’s distance from the wall surface.

LEED - Light Pollution Reduction for Exterior Lighting

LEED - Light Pollution Reduction for Exterior Lighting

To minimize light trespass from the building and site, reduce sky-glow to increase night sky access, improve nighttime visibility through glare reduction and reduce development impact from lighting on nocturnal environments.

Dark Sky Friendly

Dark Sky Friendly

Modern society requires outdoor lighting for a variety of needs, including safety and commerce. IDA recognizes this but advocates that any required lighting be used wisely.  easy visual guide to understand the differences between unacceptable, unshielded light fixtures and those fully shielded fixtures that minimize skyglow, glare and light trespass.
