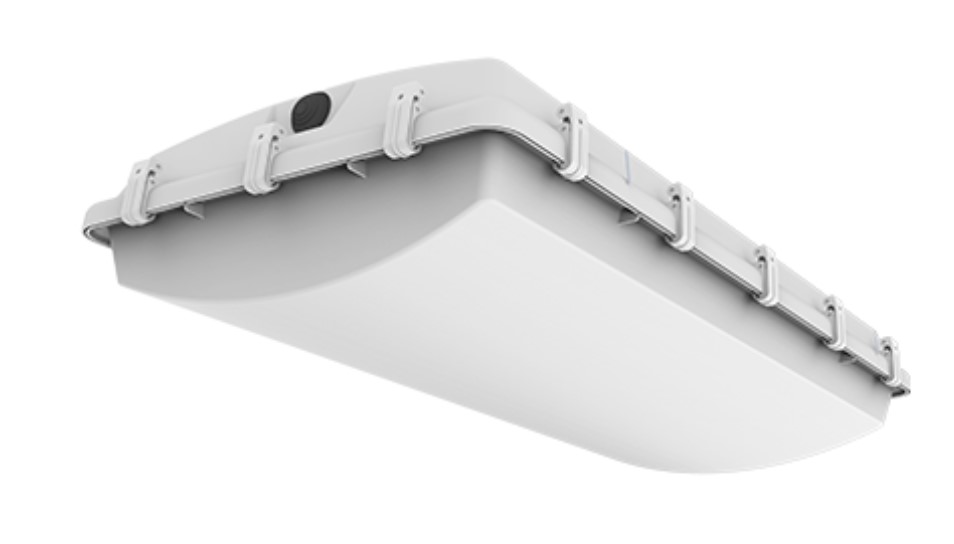

Hazardous Location Vapor Tight High Bay (HZB)

Industrial Lighting Products (ILP)

Product Details

Manufacturer's Product Page
Brochure


Spec Sheets

HZB Spec Sheet


Additional Links

Hazardous Locations

Features

  • Listings: Class 1 Division 2, Class 1 Zone 2, IK10, IP65 (Dust Tight / Wet Location Water Jet), IP66, IP67 (Dust-Tight / Protected against the effects of immersion), IP69, NEMA4X, NSF, Wet Location
  • Lumens (approx): 10,001 - 15,000, 15,001 - 20,000, 20,001 - 25,000, 25,000+
  • Mounting: Cable, Ceiling
  • Shape: Rectangle
  • Size: 2', 4'
  • Source: LED

Applications

  • Cold Storage
  • Food Processing
  • Harsh Environments &/or Hazardous
  • Manufacturing Facilities
  • Petroleum Station
  • Warehouse / Distribution Center

FEATURES:

  • Robust Hazardous Location Wide Body Vapor Tight High Bay
  • Class 1 Div 2 Groups A, B, C & D
  • Class 1 Zone 2 Groups IIA, IIB+ H2, IIC
  • UL844 Hazardous
  • Industry Leading Max Ambient up to 140ºF
    • Ambient Range -40ºF to 140ºF (Select Models)
  • Extremely High Efficacy up to 168 lm/W
  • 2ft & 4ft Fixture Lengths
  • Lumen Packages Ranging 12,000–40,000
  • Wide & Best in Class Narrow Distribution Optics
  • Surface, Pendant, or Suspended Mounting Options
  • IK10 Impact Rated Lens
  • Fiberglass Body Attributes
    • T4 Housing Ignition Temperature Rated
    • F1 Weatherability Rating, 5VA Flame Rating & 1500 PSI High Pressure Hosedown
    • IP65, IP66, IP67, & IP69 (2ft Only), NEMA4X, NSF
  • 3000K–5000K CCT
  • >80 Color Rendering Index (CRI)
  • Calculated L70 >100,000 Hours
  • 0-10V Dimmable Driver (100%-10%)
  • 5 Year Warranty
  • ETL Listed for Wet Locations
  • DesignLights Consortium® Premium Qualified Luminaire
Show more

Other Products in This Series

Hazardous Location Linear Vapor Tight (HZV)

Application Tips & Inspiration

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
