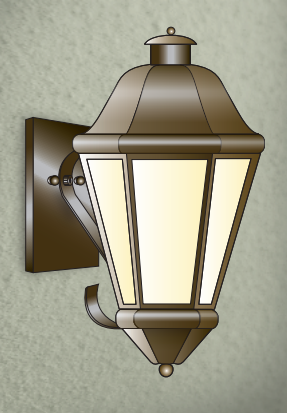

Florence Arm

Evergreen Lighting

Product Details

Manufacturer's Product Page


Spec Sheets

Florence Arm

Features

  • Control Devices: Emergency / Inverter, Photocells
  • Listings: Wet Location
  • Lumens (approx): 500-1,000, 1,501 - 2,000, 2,001 - 2,500, 3,001 - 3,500, 3,501 - 4,000
  • Mounting: Arm
  • Shape: Custom, Hexagon
  • Size: 18", 25"
  • Source: Flourescent, Incandescent, LED

Applications

  • Outdoor / Exterior
  • Vandal resistant

Material

Paintlok sheet; Standard Powdercoat Finish,White Acrylic Lens; .125 thickness,ETL Damp Location.

Installation

Mounting/wireway hole in center of canopy. Supplied with standard mounting hardware to mount to a 4” J-box or plaster ring.

Optics

Contact Evergreen Lighting for complete photometrics.

LED FEATURES

LED

Alta #AL-R-1W-30 LED array to be mounted onto an Aluminum MPCB Board configured to the proper wattage.The LED arrays will be centered within the Lens area and decorative on a white aluminum reflective plate.

Driver

Specific Drivers will be matched with each different LED array configuration/wattage.
Standard Driver Features:

  • Constant Current
  • 3 / 5 year warranty
  • 120/277 multi-voltage power supplies
  • Kelvin – 2700K, 3000K, 3500K, 4100K, 5000K

FLUORESCENT FEATURES

Ballast
SC programmed electronic high power factor ballast, multivoltage 120V/277V. Lamps not included



Show more

Application Tips & Inspiration

LEED - Light Pollution Reduction for Exterior Lighting

LEED - Light Pollution Reduction for Exterior Lighting

To minimize light trespass from the building and site, reduce sky-glow to increase night sky access, improve nighttime visibility through glare reduction and reduce development impact from lighting on nocturnal environments.

Dark Sky Friendly

Dark Sky Friendly

Modern society requires outdoor lighting for a variety of needs, including safety and commerce. IDA recognizes this but advocates that any required lighting be used wisely.  easy visual guide to understand the differences between unacceptable, unshielded light fixtures and those fully shielded fixtures that minimize skyglow, glare and light trespass.

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
