Flat Panel

Industrial Lighting Products (ILP)

Product Details

Manufacturer's Product Page


Spec Sheets

Flat Panel

Features

  • Listings: NSF
  • Lumens (approx): 2,001 - 2,500, 2,501 - 3,000, 3,001 - 3,500, 3,501 - 4,000, 4,001 - 4,500, 4,501 - 5,000, 5,001 - 5,500, 5,501 - 6,500, 6,501 -7,000, 7,001 - 8,000
  • Mounting: Recessed
  • Size: 1'x4', 2' x 2', 2' x 4'
  • Source: LED

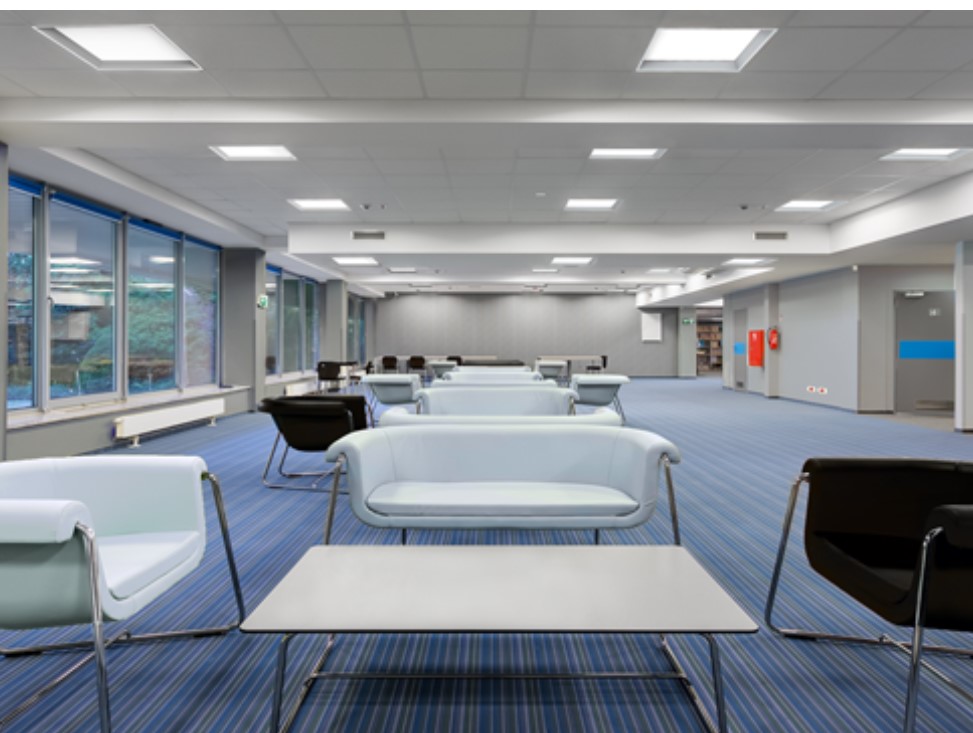

Applications

  • Classroom / School
  • Dormitory
  • Food Processing
  • Hallway / Corridor
  • Open Office

FEATURES:

  • Slim Low Profile Edge-Lit Design with Seamless Frame
  • Aluminum Post Painted Housing
  • PMMA LGP Material – Non-Yellowing Lens
  • Impact and Scratch Resistant Lens
  • NSF Option for Food Prep Applications—Non-Splash Zone

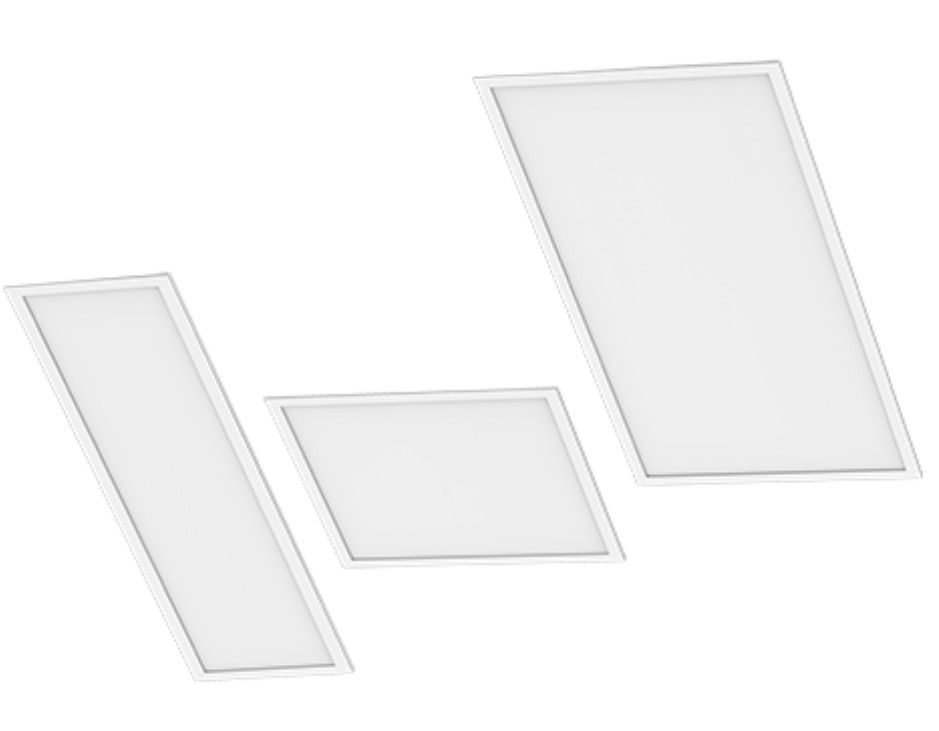

  • 1×4, 2×2 & 2×4 Flat Panel
  • Lumen Packages ranging 2,400 – 7,500

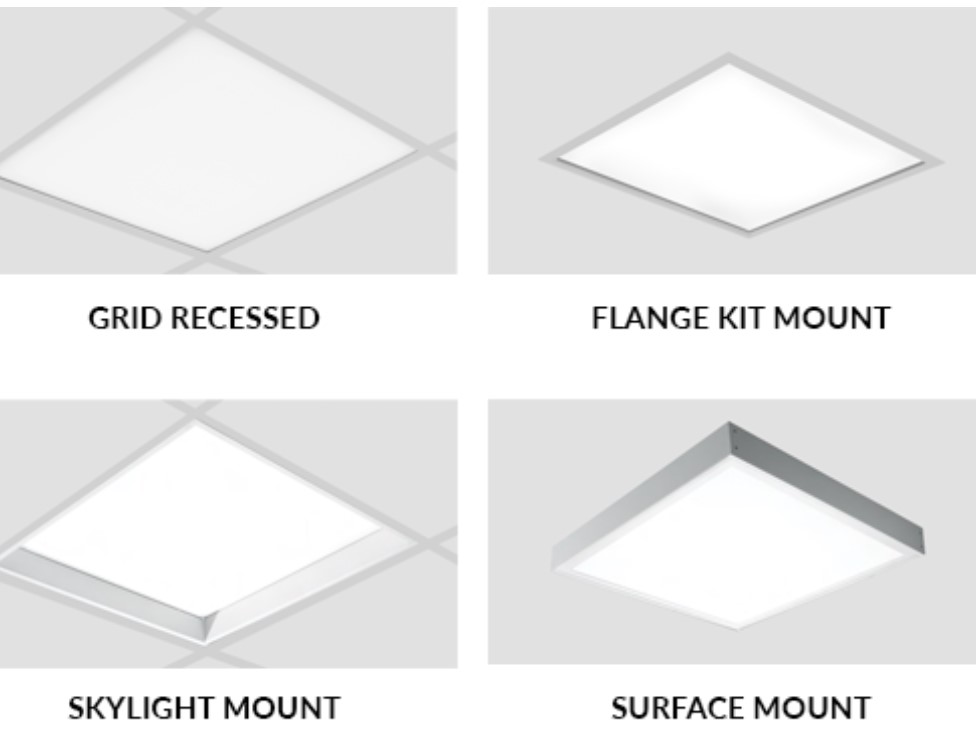

  • Recessed, Surface and Skylight Mounting options
  • L90=50,000 hours – L80 > 100,000 hours
    – 3x Life of Most Competition
  • Advanced Controls Options
  • 3500K & 4000K CCT
  • 0-10V Dimmable Driver (100% – 10%)
  • Bi-Level & Line Voltage Dimming Options
  • 120-277V Universal Voltage
  • IC Rated for Insulated Ceilings
  • 7 Year Warranty
  • UL Listed for Dry and Damp Location
  • DesignLights Consortium® Premium Qualified Luminaire
Show more

Application Tips & Inspiration

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
