FireWall 4" Fire-Rated Adjustable New Construction

Juno

Product Details

Manufacturer's Product Page
Brochure


Spec Sheets

4" Fire-Rated Gimbal New Construction


Additional Links

Juno FireWall Series Page

Features

  • Listings: Fire Rated, Wet Location
  • Lumens (approx): 500-1,000
  • Mounting: Recessed
  • Shape: Round / Circle, Square
  • Size: 4"
  • Source: LED

Applications

  • Hospitality
  • Residential
  • Wall Washing
  • Dormitory

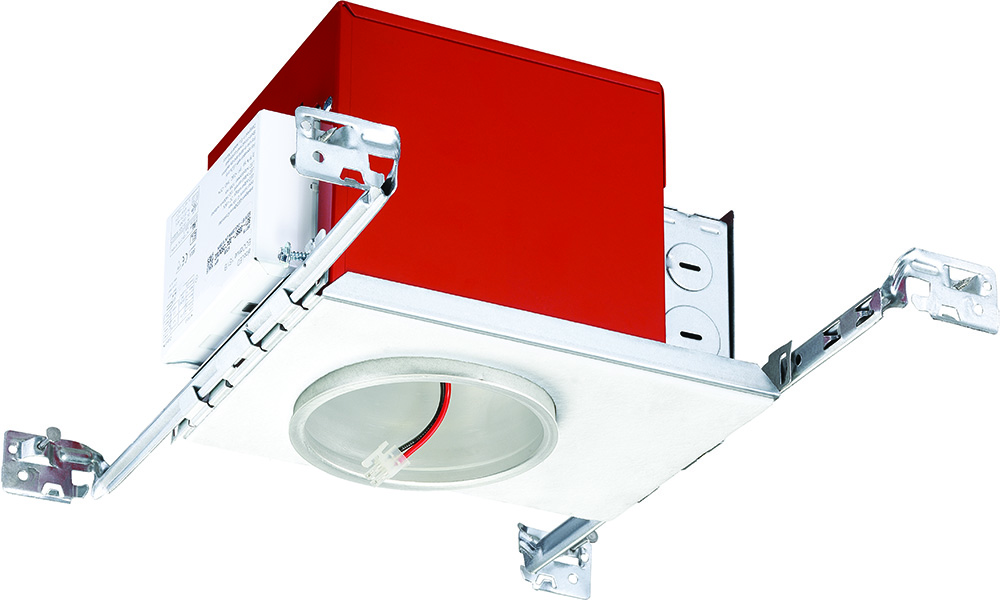

The Juno® IC1ALEDFW FireWall™ 4-inch Fire-Rated accent lighting solution for use with Juno 440LED Series, 4in adjustable trim module. Gimbal provides up to 35° vertical adjustment and is offered with three field interchangeable optics. The new construction housing features an innovative, patent pending mechanical design stringently tested to conform to UL263 and ASTM STD E119 to provide protection against the spread of heat and flames into the ceiling cavity for 1 hour and 2 hours. The IC-rated fixture’s shallow housing can fit in a 2 x 6 construction and can be completely covered with insulation. The fixture is Air-Loc® sealed to stop infiltration and exfiltration of air, reducing heating and cooling costs. ENERGY STAR® Qualified and certified to meet the high efficacy requirements of California Title 24.

Show more

Other Products in This Series

FireWall 4" Fire-Rated Quick Connect New Construction Housing (IC1FWLEDT24)

FireWall 4" Fire-Rated Internally Adjustable New Construction

FireWall 4" Fire-Rated Integrated New Construction Housing

See all products in this series

Application Tips & Inspiration

Wall washing and Wall Grazing

Wall washing and Wall Grazing

Illuminating a wall can be done in one of two ways: wall washing or wall grazing. The distinction between these two core lighting details is the fixture’s distance from the wall surface.
