FEM LED Linear

Lithonia Lighting

Product Details

Manufacturer's Product Page
Brochure


Spec Sheets

FEM LED

Features

  • Control Devices: Emergency / Inverter, Networking Devices, Sensors
  • Listings: IP65 (Dust Tight / Wet Location Water Jet), IP66, IP67 (Dust-Tight / Protected against the effects of immersion), NSF2
  • Lumens (approx): 2,501 - 3,000, 3,501 - 4,000, 5,501 - 6,500, 7,001 - 8,000, 8,001 - 9,000, 9,001 - 10,000, 10,001 - 15,000, 15,001 - 20,000
  • Mounting: Pendant, Surface
  • Size: 46", 48", 96", 4', 8'
  • Source: LED

Applications

  • Manufacturing Facilities
  • Warehouse / Distribution Center
  • Cold Storage
  • Food Processing
  • Natatorium / pool
  • Garage / Parking Structure
  • Kitchen
  • Supermarket

Specially designed for wet, damp and cold storage locations, the vapor-tight FEM LED luminaire from Lithonia Lighting® withstands rugged environments and is available in 4-foot (L48) and 8-foot (L96) lengths. With its sleek appearance, low profile and numerous options, it is ideal for parking garages, industrial facilities, retail stores, garden centers, food service, and airports.

Quality Construction. A one-piece, seamless fiberglass housing won’t corrode, rust, or crack, delivering years of reliable service and protection against the elements. A continuous, non-porous gasket keeps the fixture free from dust, dirt, and other unwanted contaminants.

The FEM LED is configurable to fit your budget and application:

  • Medium or wide distribution
  • Lumen packages ranging from 3,000 to 20,000 lumens with efficacy up to 135LPW
  • Color temperatures from 30K to 50K
  • 80CRI or 90CRI

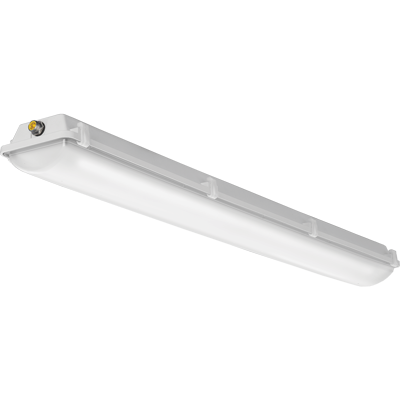

  • Lens/diffuser: frosted acrylic, standard; polycarbonate or low-profile, optional

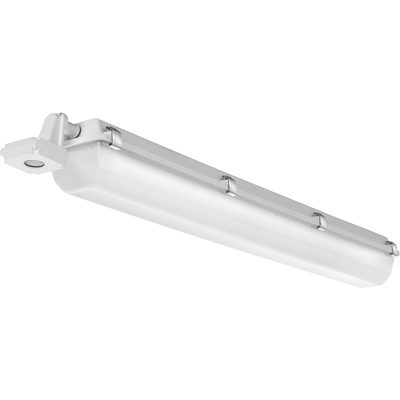

  • Latches: polycarbonate, standard; stainless steel, optional
  • Additional options: Occupancy, daylight, Acuity Controls Xpoint™ wireless, emergency battery backup, generator transfer, and more

Listings include: IP65, IP66 & IP67 rated; NEMA 4X rated lens and housing; 1500 PSI hose-down; ambient temperatures rated for -31°F (-35°C) to 77°F (25°C) when fixture is surface mounted or up to 113°F (45°C) when fixture is suspended at least 6" from ceiling.

Show more

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
