FATHOM WALL MOUNT

Bartco

Product Details

Manufacturer's Product Page


Spec Sheets

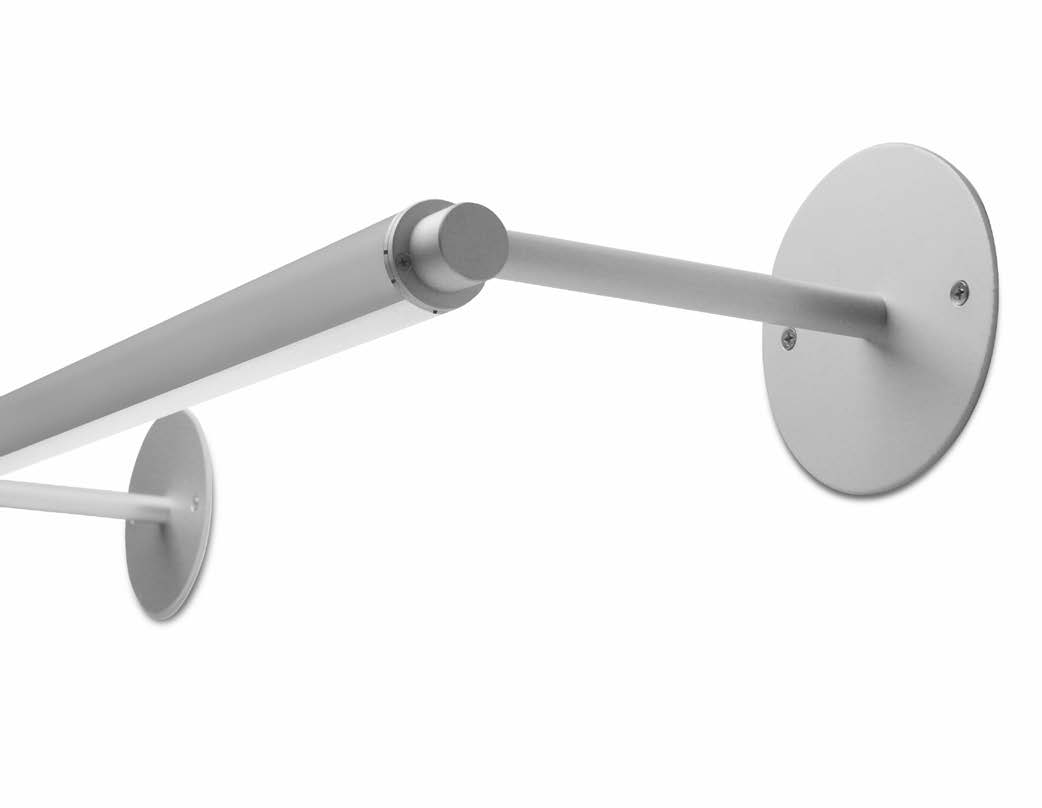

FATHOM Wall Mount

Features

  • Listings: Wet Location
  • Lumens (approx): 1 - 500, 500-1,000
  • Mounting: Arm, Wall
  • Shape: Round / Circle
  • Size: 48", 4'
  • Source: LED

Applications

  • Wall Washing
  • Signage
  • Outdoor / Exterior

Fixture housing constructed of an extruded aluminum tube, frosted acrylic extruded lens and sheet aluminum end caps
Fixture arms are constructed of zinc plated steel pipe Ø5/8” extruded aluminum sleeves and machined aluminum end cap couplers.
Includes  Ø4-3/4” aluminum plate for mounting to 4” octagonal wall boxes (by others).
Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental  satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)
Single and continuous run fixtures available with arm center distances of 2’-5’ nominal
Arms allow fixture to project from a wall or roofline nominally 3”, 6” or 12”
Fixture housing rotates 332° and is locked in place with hex fastener
Fixture wired with 10’ low voltage leads (measured from the end cap)
Included remote 120-277V wet location driver offered with 0-10V dimming or non-dim and surface mount aluminum enclosure
Standard outputs are 355, 710 and 915 lumens per foot
LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 80+ CRI typical
Life: 50,000 hours L70
Limited five year warranty
UL and C-UL listed for wet locations
IBEW manufactured and assembled
Made in U.S.A.

Show more

Application Tips & Inspiration

Wall washing and Wall Grazing

Wall washing and Wall Grazing

Illuminating a wall can be done in one of two ways: wall washing or wall grazing. The distinction between these two core lighting details is the fixture’s distance from the wall surface.

LEED - Light Pollution Reduction for Exterior Lighting

LEED - Light Pollution Reduction for Exterior Lighting

To minimize light trespass from the building and site, reduce sky-glow to increase night sky access, improve nighttime visibility through glare reduction and reduce development impact from lighting on nocturnal environments.

Dark Sky Friendly

Dark Sky Friendly

Modern society requires outdoor lighting for a variety of needs, including safety and commerce. IDA recognizes this but advocates that any required lighting be used wisely.  easy visual guide to understand the differences between unacceptable, unshielded light fixtures and those fully shielded fixtures that minimize skyglow, glare and light trespass.
