FATHOM CORNER MOUNT

Bartco

Product Details

Manufacturer's Product Page


Spec Sheets

FATHOM CORNER MOUNT

Features

  • Listings: Wet Location
  • Lumens (approx): 1 - 500 Per Foot, 501-1,000 Per Foot, 1,001-1,500 Per Foot
  • Mounting: Ceiling, Corner
  • Shape: Square
  • Size: 60", 72", 2', 3', 4', 8'
  • Source: LED

Applications

  • Lobby / Reception
  • Outdoor / Exterior

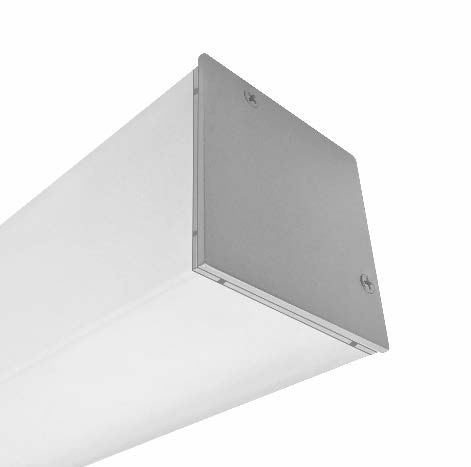

Fixture constructed of an extruded aluminum housing, frosted, extruded acrylic lens and sheet aluminum end caps
Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental  satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)
Available in nominal lengths of 2’-8’ single fixtures and continuous runs
Fixtures wired with 10’ low voltage leads and Ø7/8 hole for back feeding
Included remote 120-277V wet location driver offered with 0-10V dimming or non-dim and surface mount aluminum enclosure
Standard outputs are 430, 865 and 1135 lumens per foot
LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 80+ CRI typical
Life: 50,000 hours L70
Limited five year warranty
UL and C-UL listed for wet locations
Made in U.S.A.

Show more

Application Tips & Inspiration

LEED - Light Pollution Reduction for Exterior Lighting

LEED - Light Pollution Reduction for Exterior Lighting

To minimize light trespass from the building and site, reduce sky-glow to increase night sky access, improve nighttime visibility through glare reduction and reduce development impact from lighting on nocturnal environments.

Dark Sky Friendly

Dark Sky Friendly

Modern society requires outdoor lighting for a variety of needs, including safety and commerce. IDA recognizes this but advocates that any required lighting be used wisely.  easy visual guide to understand the differences between unacceptable, unshielded light fixtures and those fully shielded fixtures that minimize skyglow, glare and light trespass.

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
