FATHOM

Bartco

Product Details

Manufacturer's Product Page


Spec Sheets

BSW208

Features

  • Listings: Wet Location
  • Lumens (approx): 1 - 500
  • Mounting: Surface
  • Shape: Rectangle
  • Size: 24", 36", 48", 60", 72", 96"
  • Source: LED

Applications

  • Small Office
  • Lobby / Reception
  • Canopy
  • Outdoor / Exterior

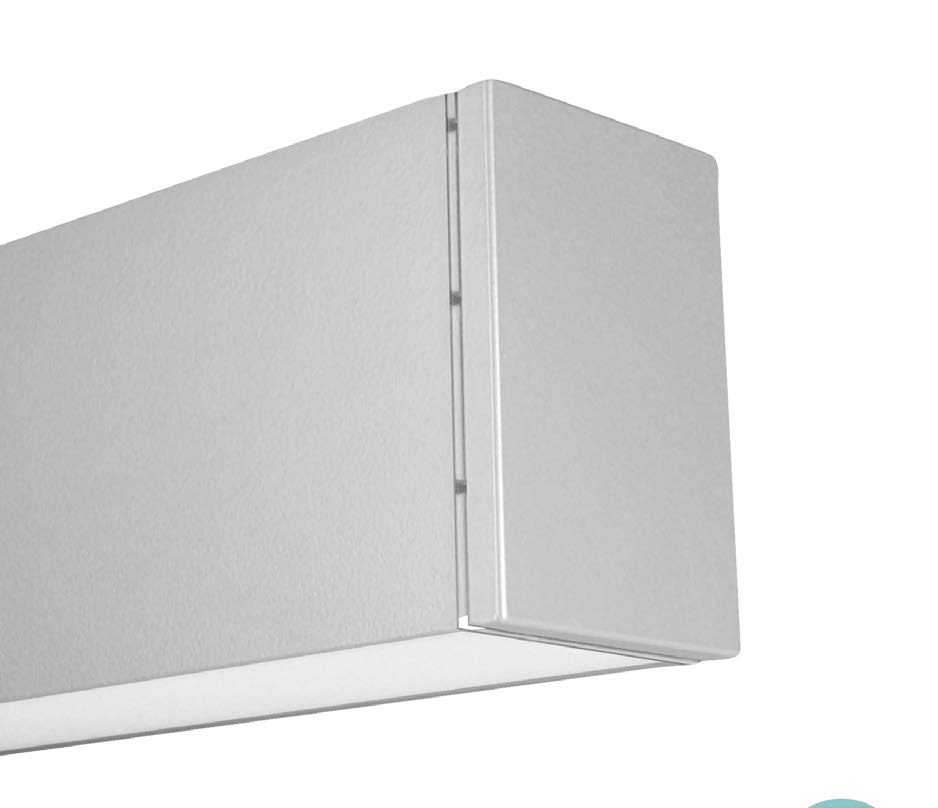

Fixture constructed of an extruded aluminum housing, extruded, frosted acrylic lens and machined aluminum end caps
Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental  satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)
Available for surface mounting in nominal lengths of 2’-8’ single fixtures and continuous runs
Fixtures wired with 10’ low voltage leads
Included remote 120-277V wet location driver offered with 0-10V dimming or non-dim and surface mount aluminum enclosure
Standard outputs are 345, 690 and 925 lumens per foot
LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 80+ CRI typical
Life: 50,000 hours L70
Limited five year warranty
UL and C-UL listed for wet locations
IBEW manufactured and assembled
Made in U.S.A.

Show more

Application Tips & Inspiration

LEED - Light Pollution Reduction for Exterior Lighting

LEED - Light Pollution Reduction for Exterior Lighting

To minimize light trespass from the building and site, reduce sky-glow to increase night sky access, improve nighttime visibility through glare reduction and reduce development impact from lighting on nocturnal environments.

Dark Sky Friendly

Dark Sky Friendly

Modern society requires outdoor lighting for a variety of needs, including safety and commerce. IDA recognizes this but advocates that any required lighting be used wisely.  easy visual guide to understand the differences between unacceptable, unshielded light fixtures and those fully shielded fixtures that minimize skyglow, glare and light trespass.
