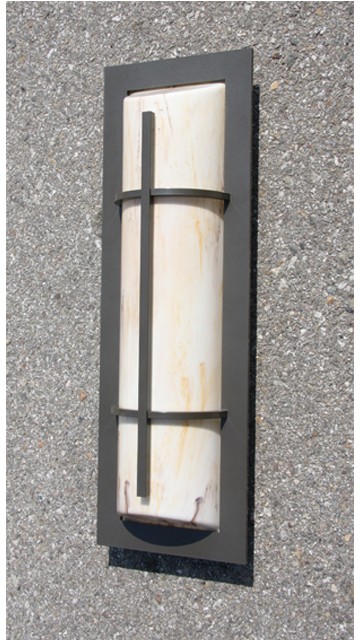

Evolution 21

Evergreen Lighting

Product Details

Manufacturer's Product Page


Spec Sheets

Evolution 21

Features

  • Listings: Wet Location
  • Lumens (approx): 500-1,000, 1,501 - 2,000, 2,001 - 2,500, 2,501 - 3,000, 3,501 - 4,000, 4,001 - 4,500, 6,501 -7,000, 7,001 - 8,000, 8,001 - 9,000, 10,001 - 15,000
  • Mounting: Wall
  • Size: 27", 32", 44", 22"
  • Source: LED

Applications

  • Outdoor / Exterior

Material

Aluminum Flat Bar Trim with decorative bar design combined with 16 gage aluminum sheet backpan with mounting fireplate, standard powdercoat finish baked at 400 degrees, Premium Quality 100% virgin white acrylic vacuum formed half cylinder lens with high impact DR additive, .125 thick, with formed top and bottom lens with no seams.

Installation

Supplied with 1/4” thick black neoprene gasket sealing the fixture to the wall. Also supplied with standard mounting hardware to mount to a 4” J-box.

Power Supply

Integral LED Power Supply for 120/277 volt, High Power Factor, AC/DC to 12 volt, constant voltage, constant current, Class 2, -40 degree C starting temperature, cold weather start

Show more

Application Tips & Inspiration

LEED - Light Pollution Reduction for Exterior Lighting

LEED - Light Pollution Reduction for Exterior Lighting

To minimize light trespass from the building and site, reduce sky-glow to increase night sky access, improve nighttime visibility through glare reduction and reduce development impact from lighting on nocturnal environments.

Dark Sky Friendly

Dark Sky Friendly

Modern society requires outdoor lighting for a variety of needs, including safety and commerce. IDA recognizes this but advocates that any required lighting be used wisely.  easy visual guide to understand the differences between unacceptable, unshielded light fixtures and those fully shielded fixtures that minimize skyglow, glare and light trespass.

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
