ERG Series

Encore Lighting

Product Details

Manufacturer's Product Page


Spec Sheets

ERG Series

Features

  • Listings: NFPA 101 Life Safety , OSHA, UL 924
  • Mounting: Recessed
  • Shape: Round / Circle
  • Size: 6"
  • Source: LED

Applications

  • Emergency / Inverter
  • Egress

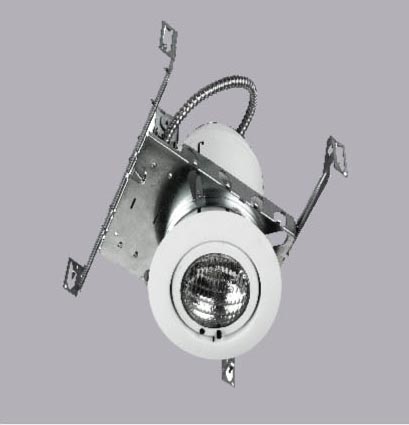

The Encore ERG is a fully recessed, self contained, emergency lighting unit. The ERG combines the aesthetics of recessed downlighting with the performance and functionality of a self contained emergency lighting unit. The recessed housing can be installed in either "New Work" open ceiling installations, or in "Retrofit" existing installations where access above the ceiling plenum is restricted, ie. existing sheetrock. The ERG housing and frame kit are constructed of 18 gauge die formed steel. The finishing Trim/Head assembly is a Par 36 Sealed Beam lamp. The Trim/Head assembly is mounted within a Gimbal Ring assembly, allowing lamp adjustment up to 45 degrees. Both 6V and 12V units are available in a variety of total wattage outputs. The ERG can power multiple remotes, or perform at full light output for up to 4 hours when no additional remotes are added.
  • 6 or 12 Volt
  • Recessed Gimbal Ring
  • Lead Calcium Battery
