ELM6L - Emergency Light

Lithonia Lighting

Product Details

Manufacturer's Product Page
Brochure


Spec Sheets

ELM6L
Thermoplastic Emergency Remote
ELMRW Wet Location Remote
Wet Protection Vandal Shield
Wire Guards

Features

  • Listings: NFPA 101 Life Safety , NFPA 70, Wet Location
  • Lumens (approx): 1,001 - 1,500
  • Mounting: Wall
  • Source: LED

Applications

  • Egress
  • Emergency / Inverter
  • Outdoor / Exterior

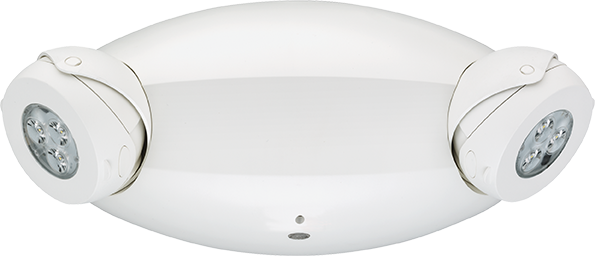

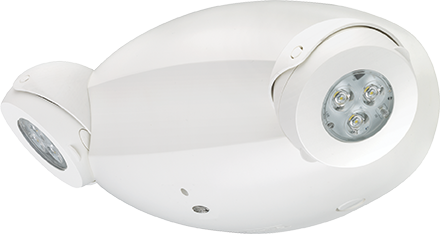

The ELM6L from Lithonia Lighting® is an aesthetically pleasing emergency LED light fixture. It provides a minimum of 90 minutes of illumination with constant light output when there is a loss of power. Equipped with six high performance LEDs and full range swivel lamp heads it is ideal for a wide-range of mounting height applications (from 7.5' to 30+'), requiring aimable optics. The linear pattern provides wide uniform distributions that deliver broad spacing up to 98' and low max to min ratios that far exceed code requirements.

The ELM6L comes standard with universal input voltage (120-347 Volt). The upgraded Lithium Iron Phosphate batteries provide extended run-times of up to 4 hours or up to 32 watts of remote capacity. Also, remote testing and self-diagnostics that meet and exceed code required testing while significantly reducing the time and cost of compliance. Plus, constant light output over the full discharge period.

Show more
