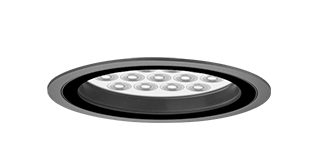

DOC100

WE-EF

Product Details

Manufacturer's Product Page


Spec Sheets

DOC110
DOC120
DOC140

Features

  • Listings: IK07, IP66, Wet Location
  • Lumens (approx): 1,001 - 1,500, 2,501 - 3,000, 5,501 - 6,500
  • Mounting: Recessed
  • Shape: Round / Circle
  • Size: 5"
  • Source: LED

Applications

  • Accent

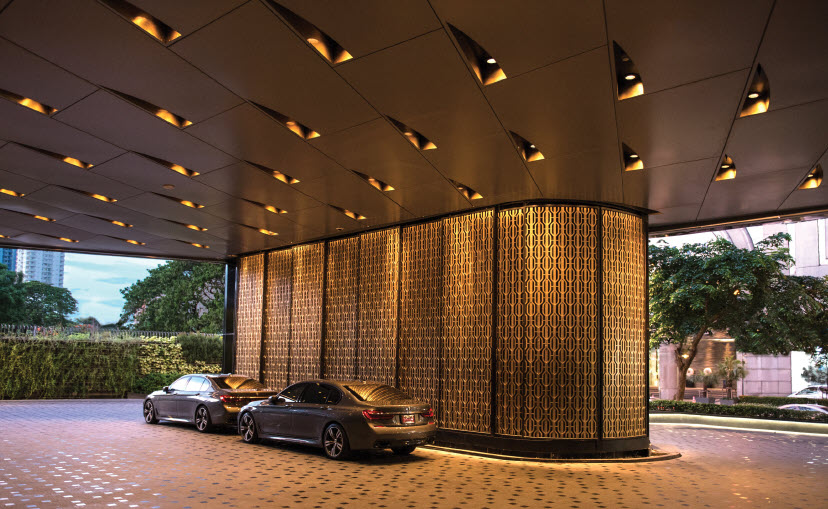

  • Canopy
  • Hallway / Corridor
  • Outdoor / Exterior
  • Transit
  • Wall Washing

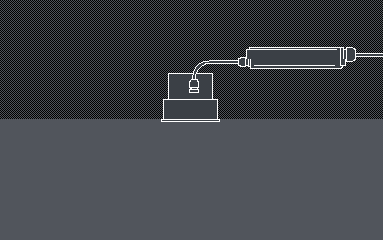

P66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG gasket. Safety glass lens. Two cable entries. Integral EC electronic converter in thermally separated compartment. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. Factory installed LED circuit board. The luminaire is factory- sealed and does not need to be opened during the installation. Optional 2200 K version available. To be specified at time of ordering. A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings. To be ordered separately.

Show more
