Bolt

Meteor

Product Details

Manufacturer's Product Page


Spec Sheets

Mini Standard
Mini Outdoor/Natatorium
Standard
Outdoor/Natatorium
Tunable White
W+RGB


Additional Links

Bolt Introduction Video
Standard Revit

Features

  • Dynamic Features: RGBW, Tunable White
  • Lumens (approx): 7,001 - 8,000, 10,001 - 15,000, 20,001 - 25,000, 25,000+
  • Mounting: Yoke
  • Shape: Rectangle, Square
  • Source: LED

Applications

  • Arena
  • Atrium
  • Bridge
  • Canopy
  • Car Dealership
  • Gymnasium
  • Natatorium / pool
  • Outdoor / Exterior
  • Sport Facilities

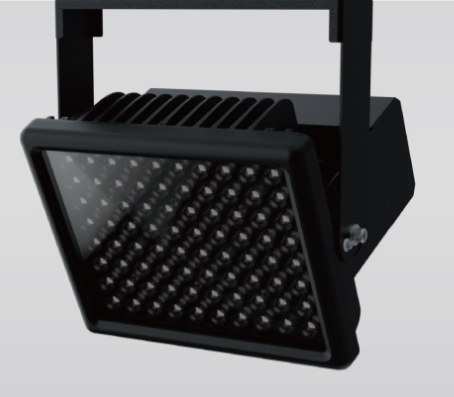

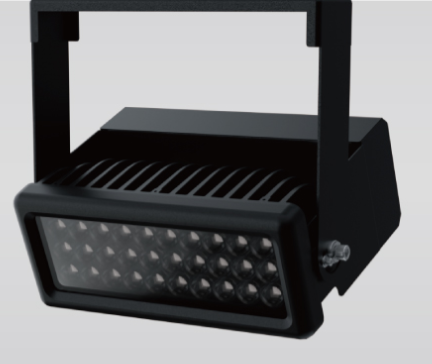

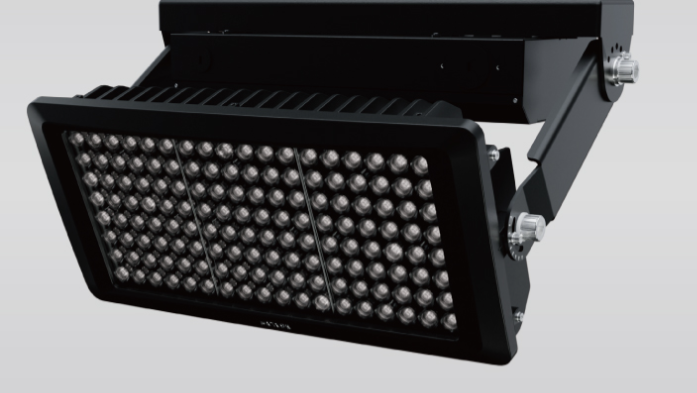

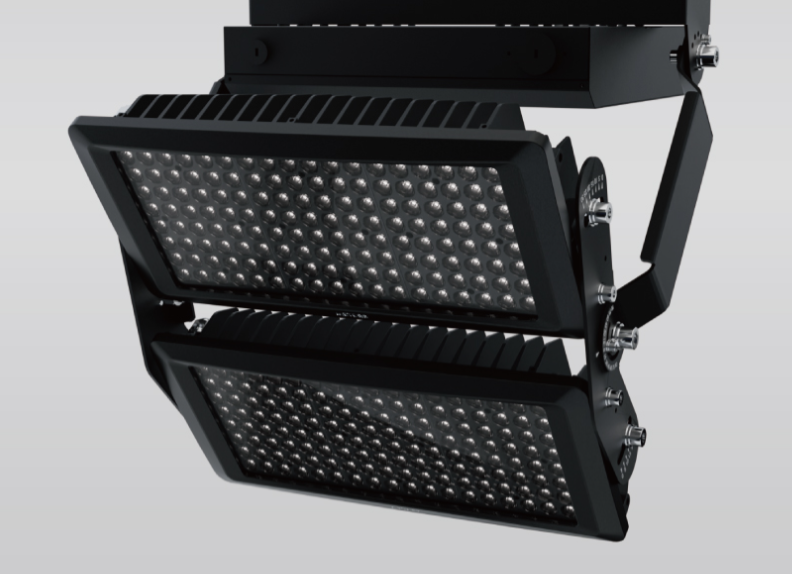

The Bolt luminaire is highly flexible, and comes with a 120-degree range of motion at both the bracket and lighthead level, allowing you to adjust the luminaire for any project application. A variety of optics are also available ranging from 15-degrees to 100-degrees. All Bolt luminaires are IP 65 Wet location listed, and are available in both Outdoor and Natatorium rated options. All of which are salt spray tested to ANSI B117.

  • Better Performance, Technology and Optics
    • The expanded, and upgraded Bolt series has a new light engine capable of delivering a lumen package range of 6,930 lm to 68,000 lm with DLC and DLC Premium listings.
  • Extensive Mounting
    • A wide range of mounting hardware is available to be specified, to effortlessly fulfill different architectural and area requirements.
  • Dynamic Colorflip Color Changing Technology
    • The Bolt series can bring a whole new level of complexity and sophistication with it’s W+RGB and Tunable White configurations.

Show more

Application Tips & Inspiration

LEED - Light Pollution Reduction for Exterior Lighting

LEED - Light Pollution Reduction for Exterior Lighting

To minimize light trespass from the building and site, reduce sky-glow to increase night sky access, improve nighttime visibility through glare reduction and reduce development impact from lighting on nocturnal environments.

Dark Sky Friendly

Dark Sky Friendly

Modern society requires outdoor lighting for a variety of needs, including safety and commerce. IDA recognizes this but advocates that any required lighting be used wisely.  easy visual guide to understand the differences between unacceptable, unshielded light fixtures and those fully shielded fixtures that minimize skyglow, glare and light trespass.

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
