BLTS

Bartco

Product Details

Manufacturer's Product Page


Spec Sheets

BLT205
BLT210
BLT215

Features

  • Lumens (approx): 501-1,000 Per Foot, 1,001-1,500 Per Foot
  • Mounting: Cable, Ceiling, Pendant
  • Shape: Rectangle
  • Size: 5', 6', 2', 3', 4', 8'

Applications

  • Small Office
  • Lobby / Reception
  • Retail
  • Closet Lighting
  • Housing is formed and welded, 20 ga. steel, chemically treated to resist corrosion and enhance paint adhesion

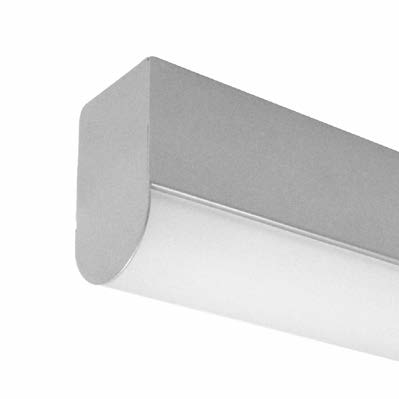

  • Model variations offered in rectangular or rounded profiles for surface and cable suspended applications
  • Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental  satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes)
  • Available as single fixtures in nominal lengths of 2’-8’
  • Surface mount models include knock outs on the rear and surface or suspended models are available with optional end knock outs.
  • Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available)
  • Integral 120-277V emergency battery backup available for 4’ nominal non-dim or 0-10V (consult factory for all other lengths/drivers)
  • Standard light outputs are 600 or 800 lumens per foot
  • LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse all with 90+ CRI typical
  • Life: 50,000 hours L70
  • Passive infrared occupancy sensor available (FOR RECTANGULAR PROFILE ONLY)
  • Limited five year warranty
  • UL and C-UL listed for dry and damp locations
  • IBEW manufactured and assembled
  • Made in U.S.A.
Show more

Application Tips & Inspiration

1. Quick Ship Programs are subject to change. Products with this logo mean that only specific variations may be quick ship. Check the manufactures website for latest program.
2. DLC listings are subject to change. Products with this logo mean that only specific variations may be DLC listed. Check the latest list on the DLC website to confirm.
3. Energy Star listings are subject to change. Products with this logo mean that only specific variations may be Energy Star Listed. Check the latest list on the Energy Star website to confirm.
4. All product information is subject to change. Please see the latest specification sheets on the manufacture’s website.

↑
