ArcX-N

Features

  • Lumens (approx): 1 - 500 Per Foot, 501-1,000 Per Foot, 1,001-1,500 Per Foot, 1,501-2,000 Per Foot, 2,001-2,500 Per Foot
  • Mounting: Cable, Ceiling, Pendant, Recessed, Surface
  • Shape: Curved, Round / Circle
  • Source: LED

Applications

  • Small Office
  • Nursing Home / Rehabilitation
  • Hospitality
  • Lobby / Reception
  • Library
  • Open Office
  • Retail
  • Common Area
  • Elevator Lobby

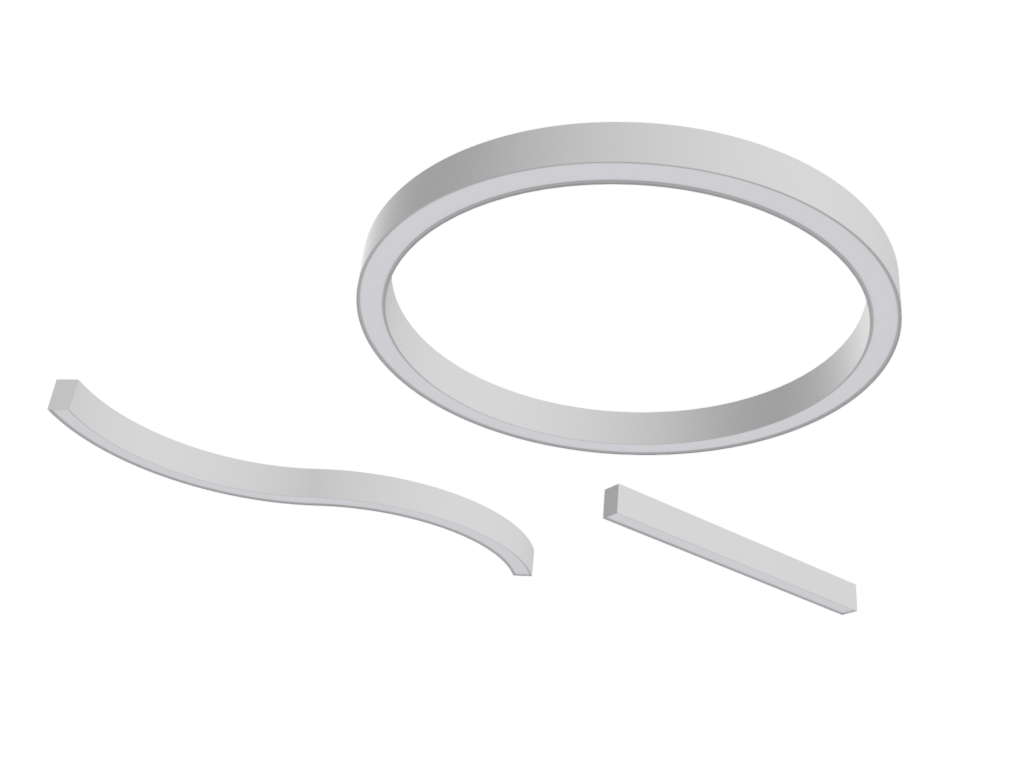

  • 2.75″W x 4″H Narrow Extruded Aluminum custom curved LED fixture, Direct, Indirect, Direct/Indirect distributions
  • Curved in radii from 12′
  • Damp Location Rated, cETLus Listed
  • Output up to 1350lm/ft each direction
  • 3000 to 5000k, Tunable White and Color options
  • 80CRI standard, 90CRI optional
  • 0-10v dimming down to 10% standard, other options available
  • Custom radius and angle of span
  • Recessed, Surface and Suspended mounting options
  • White powder coat standard, custom colors available
Show more

Other Products in This Series

ArcX2N

ArcX

ArcX2
